2138731-1 | TE Connectivity

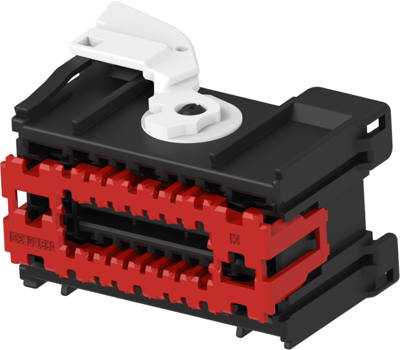

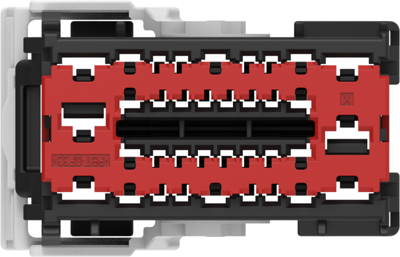

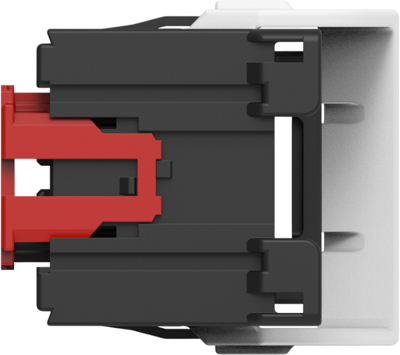

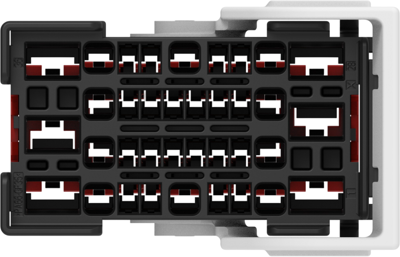

Socket housing, 2138731-1, TE Connectivity

Row-to-row spacing: 6 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Number of positions: 36, Number of rows: 3, 4, Cable exit angle: 90°, Body material: PA GF, Primary product color: black, Mating tab width: 1.5-2.8 mm, 6.3 mm, Mounting feature: without, Polarized, Centerline (pitch): 3.5 mm, 4.6 mm, 5.25 mm, 7.2 mm, Height: 40 mm, Length: 54.2 mm, Width: 41 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: power & signal, Serviceable: yes, Connector position assurance capable: no
