2141995-1 | TE Connectivity
Plug, unequipped, 10 pole, straight, 3 rows, gray, 2141995-1
Order No.: 35P9401
EAN: 4099889889543
MPN:
2141995-1
Unit Price (€ / pc.)
2.2967 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.0825 €
50 pcs.
1.8921 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale

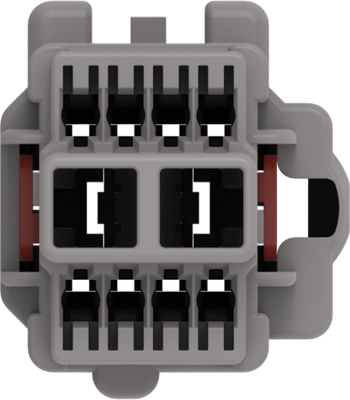

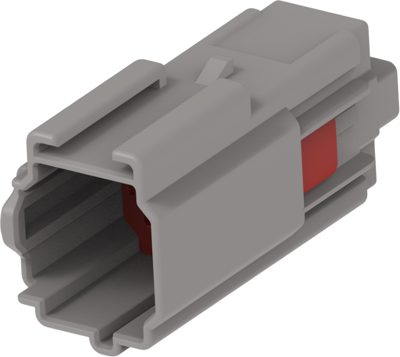

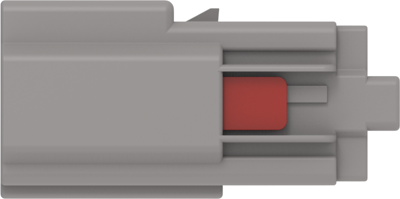

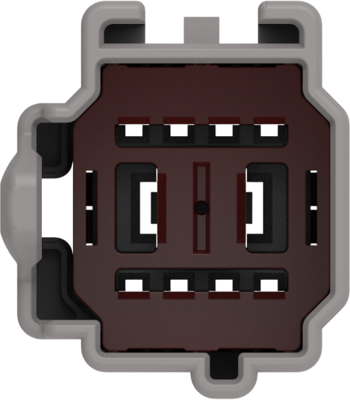

Plug housing, 2141995-1, TE Connectivity
Row-to-row spacing: 5.9 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Number of positions: 10, Number of rows: 3, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: gray, Mating tab width: 0.64 mm, 2.8 mm, Mounting feature: without, Centerline (pitch): 2.54 mm, 6 mm, Height: 20.9 mm, Width: 44.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Packaging method: box, Packaging quantity: 1200, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 3 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | gray | |
| Contact type | plug | |
| Rated voltage | 14 V | |
| Pin number | 10 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
