2177419-3 | TE Connectivity

Plug, 32 pole, angled, 2 rows, black, 2177419-3

Order No.: 36P1182
EAN: 4099889893854
MPN:
2177419-3

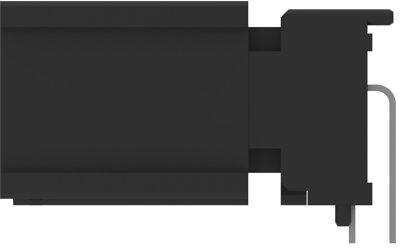

2177419-3 TE Connectivity Automotive Power Connectors Image 1

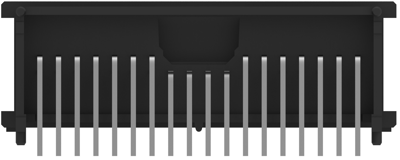

2177419-3 TE Connectivity Automotive Power Connectors Image 2

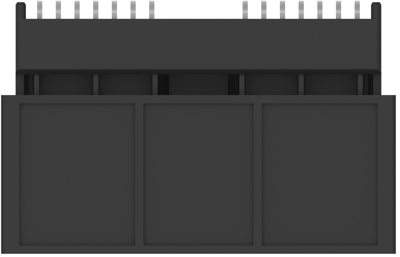

2177419-3 TE Connectivity Automotive Power Connectors Image 3

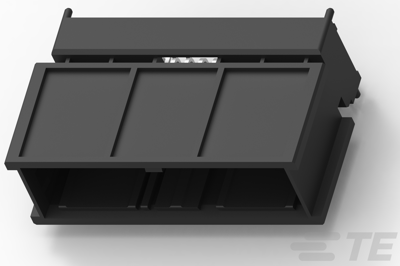

2177419-3 TE Connectivity Automotive Power Connectors Image 4

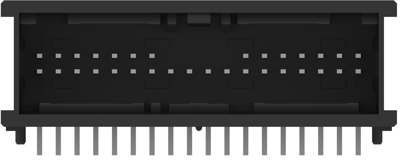

2177419-3 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
4.8552 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
4.86 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8552 €
10 pcs.
4.4744 €
50 pcs.
4.0222 €
100 pcs.
3.6176 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB mount header, 2177419-3, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 32, Number of positions: 32, PCB mount orientation: horizontal, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.5 mm, Mating tab thickness: 0.4 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 1.8 mm, Product length: 38.05 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94V-0, Packaging quantity: 46, Interface number: 114-94000-1

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung abgewinkelt
Farbe schwarz
Kontaktart Stecker
Kontaktoberfläche verzinnt
Nennspannung 12 V
Polzahl 32-polig
Rastermaß 1.8 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85369001
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
