2177586-1 | TE Connectivity

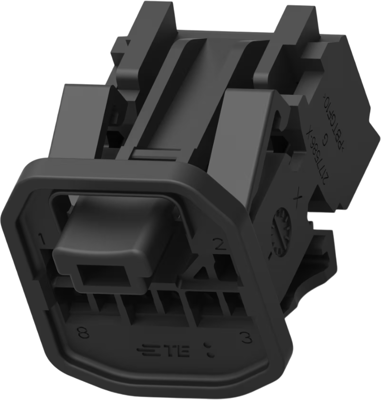

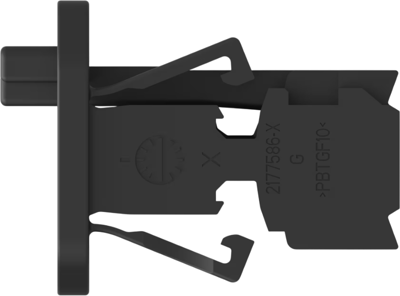

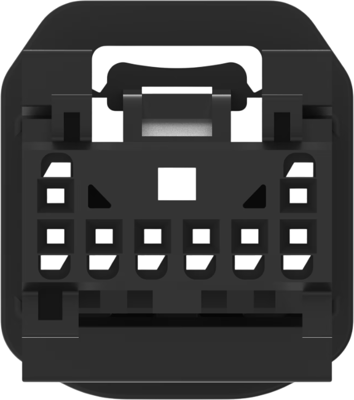

Socket, unequipped, 8 pole, straight, 2 rows, black, 2177586-1
Order No.: 35P9936
EAN: 4099889891171
MPN:
2177586-1
Unit Price (€ / pc.)
1.3209 € *
Available: 0 pcs.
Available in 5 Days: 1,680 pcs.
Leadtime: 22 Weeks **
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
10 pcs.
1.2019 €
50 pcs.
1.0829 €
100 pcs.
0.9758 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 2177586-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 8, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Mating tab width: 0.5 mm, Mating alignment type: polarized, Centerline (pitch): 1.8 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: signal, Packaging method: box & carton, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 12 V | |
| Rated current | 3 A | |
| Pin number | 8-polig | |
| Grid | 1.8 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
