2208636-1 | TE Connectivity

Plug, 6 pole, angled, 2 rows, black, 2208636-1

Order No.: 36P1274
EAN: 4099889894523
MPN:
2208636-1

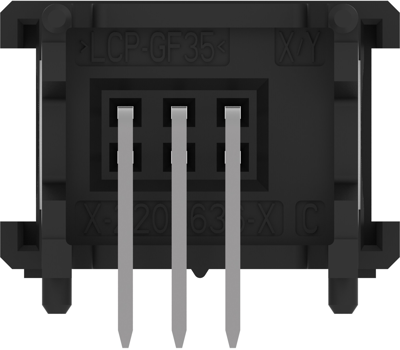

2208636-1 TE Connectivity Automotive Power Connectors Image 1

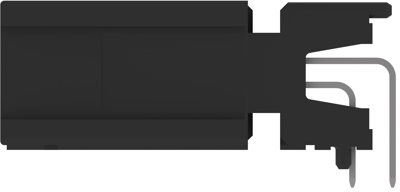

2208636-1 TE Connectivity Automotive Power Connectors Image 2

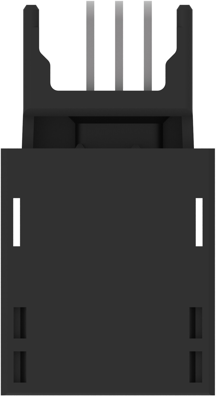

2208636-1 TE Connectivity Automotive Power Connectors Image 3
2208636-1 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
3,396.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2130 pcs.
1.5946 €

PCB mount header, 2208636-1, TE Connectivity

Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 6, Number of positions: 6, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 0.5 mm, Mating tab thickness: 0.4 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 1.8 mm, Product length: 13.4 mm, Shielded: no, Circuit application: signal, Packaging quantity: 355, Interface number: 114-94000-11

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung abgewinkelt
Farbe schwarz
Kontaktart Stecker
Kontaktoberfläche verzinnt
Polzahl 6-polig
Rastermaß 1.8 mm
Verriegelung Ja
Logistics
Ursprungsland TW
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
