2822344-1 | TE Connectivity

Plug, unequipped, 7 pole, straight, 2 rows, green, 2822344-1

Order No.: 36P1417
EAN: 4099889894660
MPN:
2822344-1
Series: Multilock
2822344-1 TE Connectivity Automotive Power Connectors

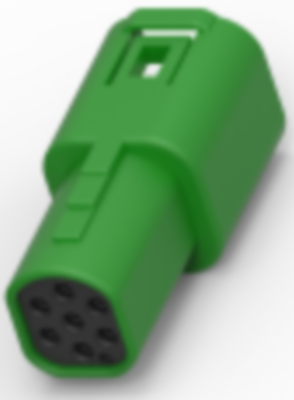

Image may differ
Unit Price (€ / pc.)
4.2007 € *
Available: 0 pcs.
Available in 5 Days: 900 pcs.
Leadtime: 29 Weeks **
Total Price:
4.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.2007 €

Plug housing, 2822344-1, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 7, Number of rows: 2, Body material: PBT GF, Primary product color: green, Mating tab width: 0.8 mm, Mating alignment type: polarized, Centerline (pitch): 2 mm, Product height: 24.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung gerade
Bestückung unbestückt
Farbe grün
Kontaktart Stecker
Nennspannung 250 V
Polzahl 7-polig
Rastermaß 2 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
