2822346-1 | TE Connectivity

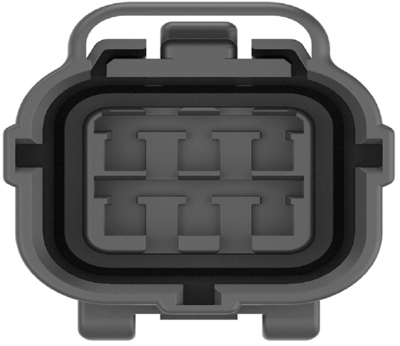

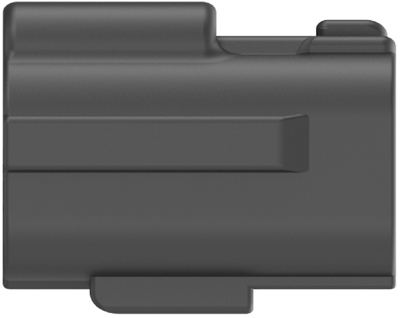

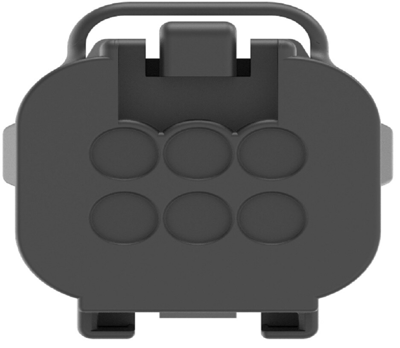

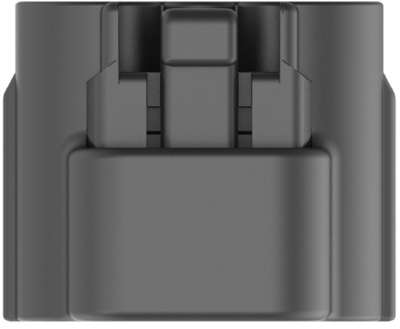

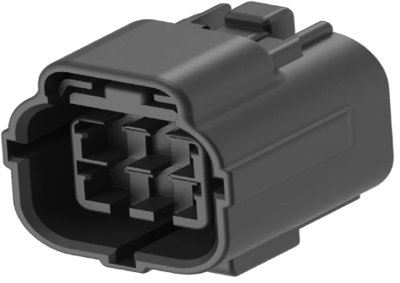

Socket, unequipped, 6 pole, straight, 2 rows, black, 2822346-1
Unit Price (€ / pc.)
1.5113 € *
Available: 0 pcs.
Available in 5 Days: 238 pcs.
Leadtime: 34 Weeks **
Total Price:
1.51 € *
Price list
Quantity
Price per unit*
60 pcs.
1.5113 €
350 pcs.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 2822346-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 6, Number of rows: 2, Operating voltage: 24 VDC, Body material: PBT, Primary product color: black, Mating tab width: 1.8 mm, Mating alignment type: polarized, Connector mounting type: cable mount (free-hanging), Centerline (pitch): 4.8 mm, Row-to-row spacing: 5.6 mm, Operating temperature (max): 105 °C, Operating temperature range: -30-105 °C, Circuit application: power, UL flammability rating: UL 94V-2, Packaging method: box, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 24 V | |
| Pin number | 6 pole | |
| Grid | 4.8 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
