2822362-4 | TE Connectivity

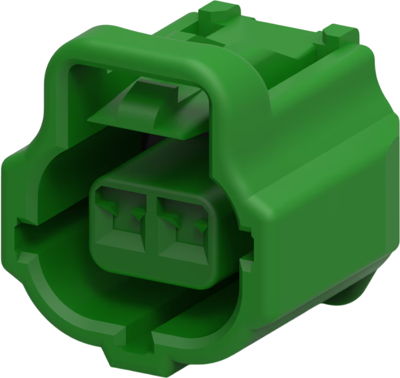

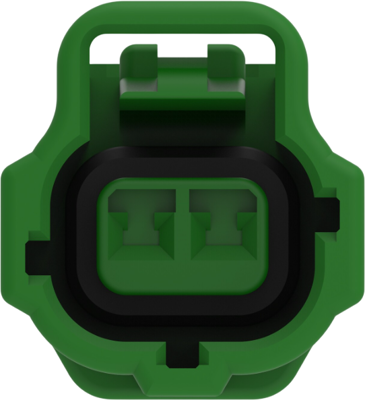

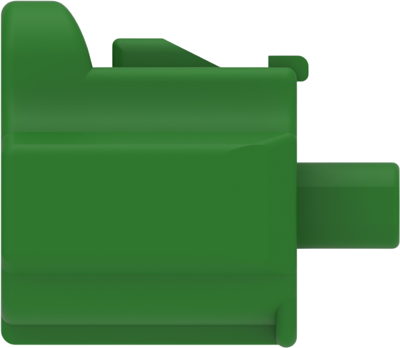

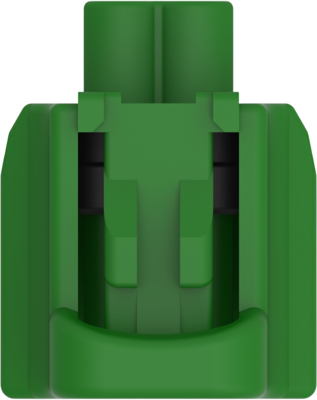

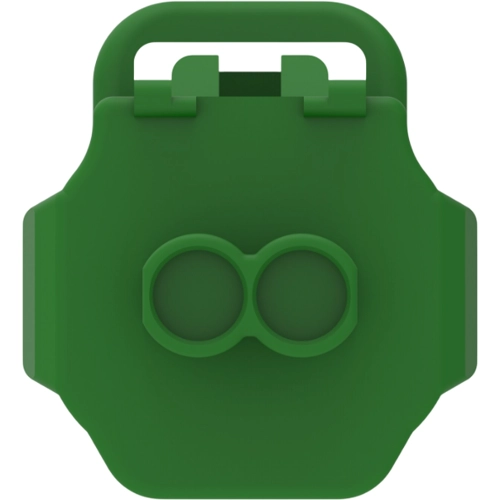

Socket, unequipped, 2 pole, straight, 1 row, green, 2822362-4
Unit Price (€ / pc.)
1.8088 € *
Available: 0 pcs.
Leadtime: On Request **
Socket housing, 2822362-4, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Body material: PBT, Primary product color: green, Connector code: D, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 27.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: bag, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | green | |
| Contact type | socket | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
