2822363-1 | TE Connectivity

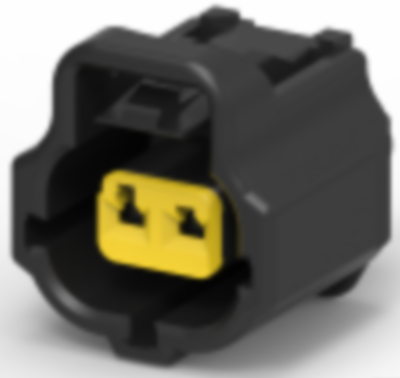

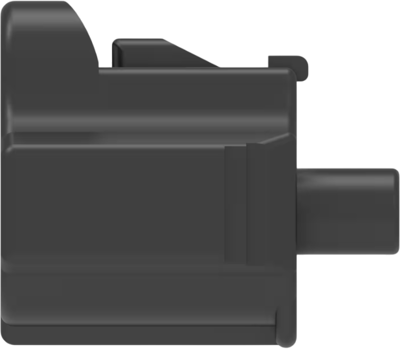

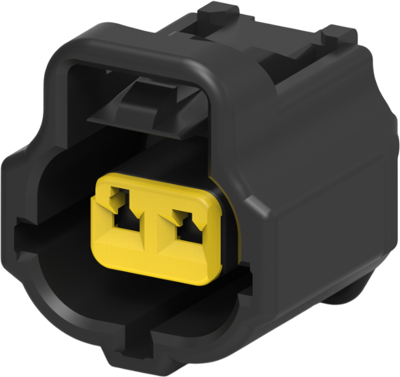

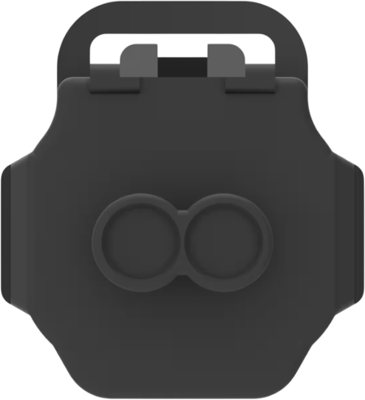

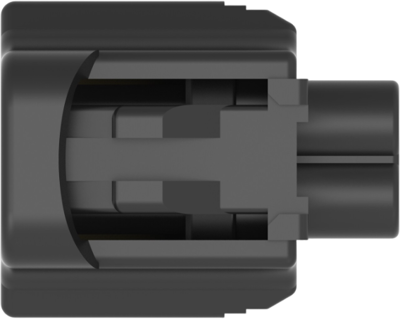

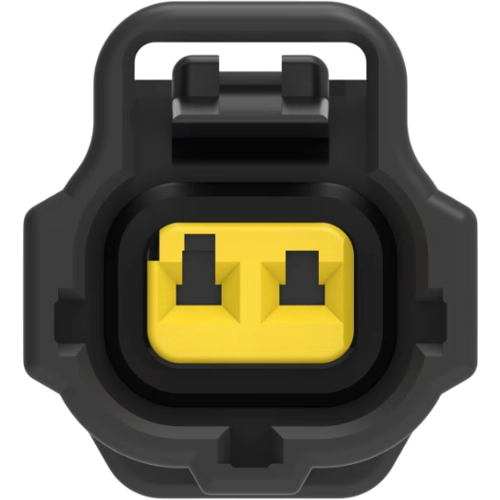

Socket, unequipped, 2 pole, straight, 1 row, black, 2822363-1
Unit Price (€ / pc.)
2.3086 € *
Available: 0 pcs.
Available in 5 Days: 714 pcs.
Leadtime: 25 Weeks **
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
40 pcs.
2.3086 €
250 pcs.
1.9040 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 2822363-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Body material: PBT, Primary product color: black, Connector code: B, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 27.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: bag, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
