282990-3 | TE Connectivity
Socket, unequipped, 12 pole, straight, 2 rows, blue, 282990-3
Order No.: 36P1585
EAN: 4099889896015
MPN:
282990-3
Unit Price (€ / pc.)
0.9639 € *
Available: 0 pcs.
Leadtime: On Request **

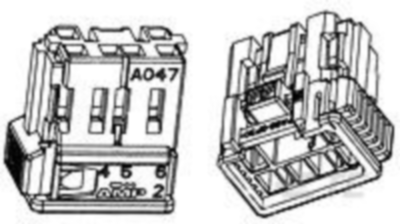

Socket housing, 282990-3, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 12, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: blue, Mating tab width: 1.7 mm, Centerline (pitch): 3.5 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | blue | |
| Contact type | socket | |
| Rated voltage | 24 V | |
| Rated current | 14 A | |
| Pin number | 12 pole | |
| Grid | 3.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
