282992-1 | TE Connectivity
Plug, unequipped, 6 pole, straight, 2 rows, white, 282992-1
Order No.: 36P1632
EAN: 4099889896251
MPN:
282992-1
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

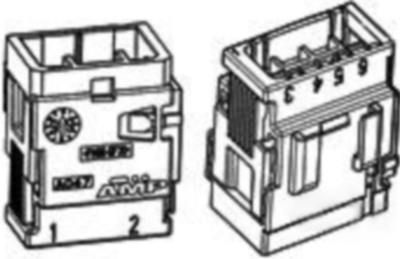

Plug housing, 282992-1, TE Connectivity
Row-to-row spacing: 5.9 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 6, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: white, Mounting feature: without, Polarized, Centerline (pitch): 3.5 mm, 5.5 mm, Height: 17.2 mm, Length: 25 mm, Width: 31.4 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Packaging method: box, Packaging quantity: 1500, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | weiß | |
| Contact type | Stecker | |
| Rated voltage | 24 V | |
| Rated current | 14 A | |
| Pin number | 6-polig | |
| Grid | 3.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
