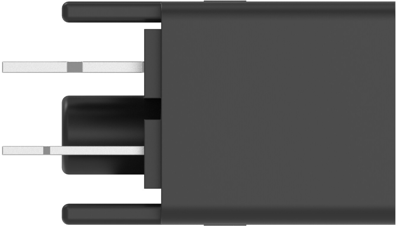

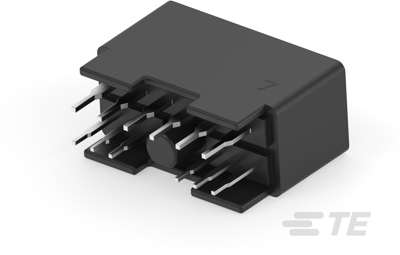

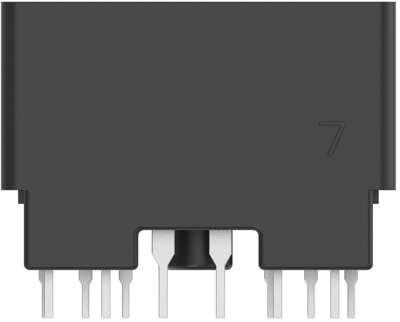

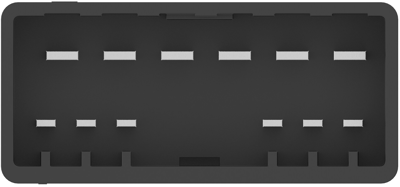

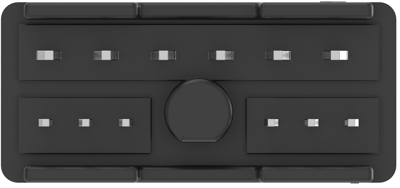

PCB mount header, 284162-1, TE Connectivity
Hybrid header: yes, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 12, Number of positions: 12, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 24 VDC, Primary product color: black, Mating tab width: 1.7 mm, 2.8 mm, Mating tab thickness: 0.64-0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 3.5 mm, 5 mm, Product length: 34.5 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: none, Packaging quantity: 70, Interface number: 284159-1
