284875-6 | TE Connectivity
Socket, unequipped, 20 pole, straight, 2 rows, black, 284875-6
Order No.: 35P8863
EAN: 4099889888232
MPN:
284875-6
Unit Price (€ / pc.)
2.0111 € *
Available: 0 pcs.
Leadtime: On Request **

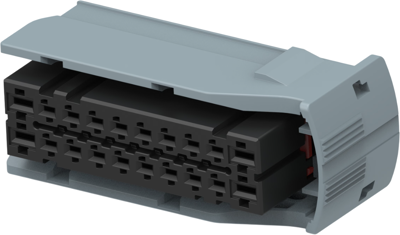

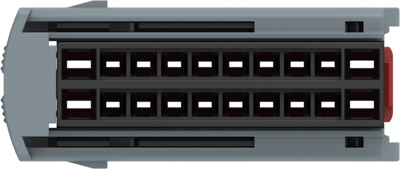

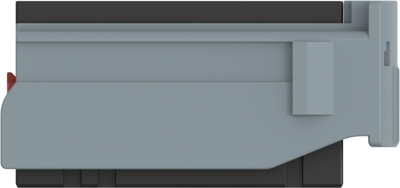

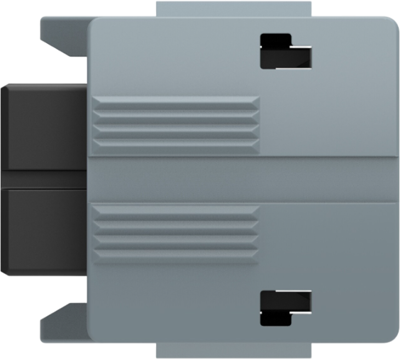

Socket housing, 284875-6, TE Connectivity
Row-to-row spacing: 3 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 20, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: black, Mating tab width: 1.6 mm, 2.8 mm, Mounting feature: without, Centerline (pitch): 4.2 mm, 4.65 mm, Height: 25.6 mm, Length: 55.2 mm, Width: 21 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -25-105 °C, Circuit application: signal, Packaging method: bag/box, Packaging quantity: 600, Serviceable: yes, Connector position assurance capable: yes
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 24 V | |
| Rated current | 20 A | |
| Pin number | 20 pole | |
| Grid | 4.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
