3-1418437-1 | TE Connectivity

Socket, unequipped, 6 pole, straight, 2 rows, green, 3-1418437-1

Order No.: 36P4145
EAN: 4099889905212
MPN:
3-1418437-1
TE Connectivity

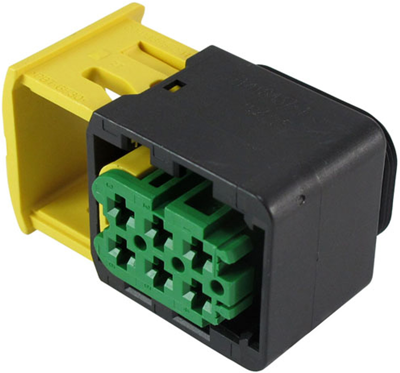

3-1418437-1 TE Connectivity Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
1.1781 € *
Available: 0 pcs.
Available in 5 Days: 2,738 pcs.
Leadtime: 20 Weeks **
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
75 pcs.
1.1781 €
400 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket housing, 3-1418437-1, TE Connectivity

Row-to-row spacing: 3 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 6, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, 42 V, 60 V, Operating voltage: 60 VDC, Cable exit angle: other, Body material: PBT GF, Primary product color: green, Mating tab width: 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 6 mm, Height: 31.25 mm, Length: 44 mm, Width: 25.7 mm, Operating temperature (max): 70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, Operating temperature range: -40-140 °C, Circuit application: signal, Degree of protection: IP67, UL flammability rating: UL 94V-0, Packaging method: box, Packaging quantity: 380, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Connection crimp connection
Number of rows 2
Version straight
Additional parts unequipped
Colour green
Contact type socket
Rated voltage 60 V
Rated current 40 A
Pin number 6 pole
Grid 6 mm
Type of locking Yes
Logistics
Country of origin CN
Customs tariff number 85389011
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
