3-1437290-9 | TE Connectivity

Socket, unequipped, 34 pole, straight, 4 rows, black, 3-1437290-9

Order No.: 36P4316
EAN: 4099889906219
MPN:
3-1437290-9
Series: SUPERSEAL 1.0
TE Connectivity

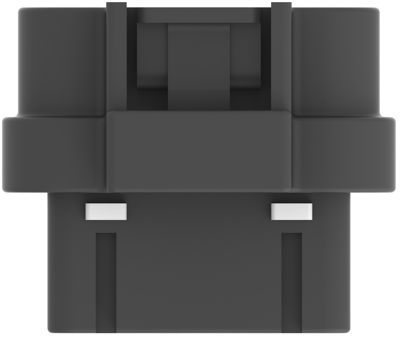

3-1437290-9 TE Connectivity Automotive Power Connectors Image 1

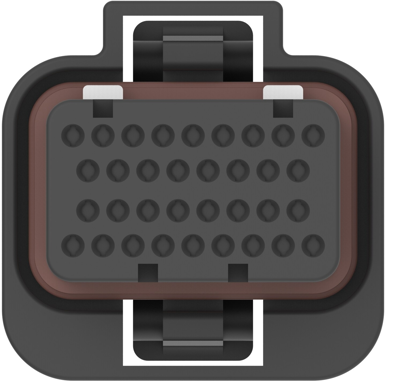

3-1437290-9 TE Connectivity Automotive Power Connectors Image 2

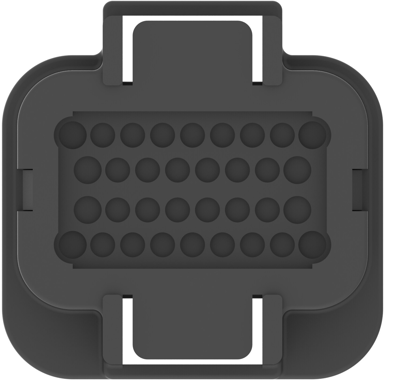

3-1437290-9 TE Connectivity Automotive Power Connectors Image 3

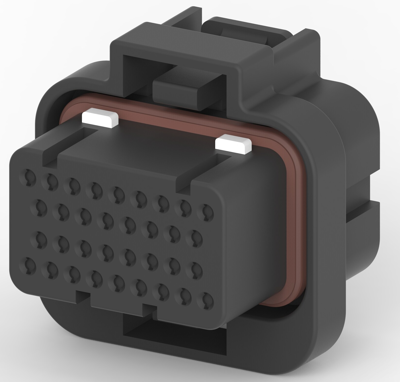

3-1437290-9 TE Connectivity Automotive Power Connectors Image 4

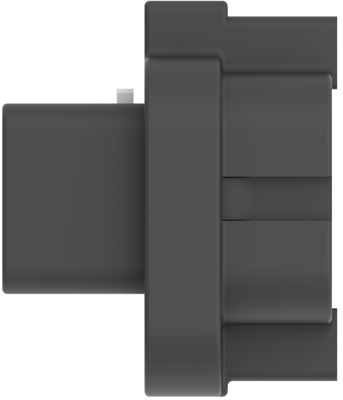

3-1437290-9 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
11.2217 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.2217 €

Socket housing, 3-1437290-9, TE Connectivity

Row-to-row spacing: 3 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Number of positions: 34, Number of rows: 4, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Operating voltage: 250 VAC, Operating voltage: 250 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Mating pin diameter: 1 mm, Mounting feature: without, Polarized, Centerline (pitch): 3 mm, Height: 38 mm, Length: 32.15 mm, Width: 38.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Degree of protection: JIS D0203, UL flammability rating: UL 94V-2, Packaging method: box, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Connection crimp connection
Number of rows 4
Version straight
Additional parts unequipped
Colour black
Contact type socket
Rated voltage 250 V
Rated current 15 A
Pin number 34 pole
Grid 3 mm
Type of locking Yes
Logistics
Country of origin US
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
