3-969508-2 | TE Connectivity

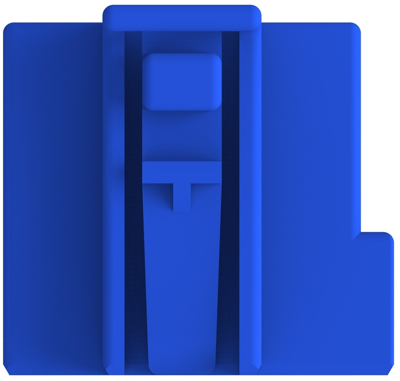

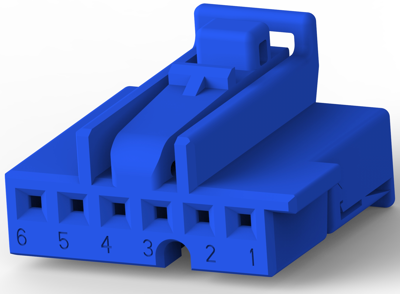

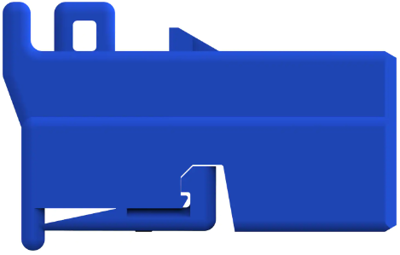

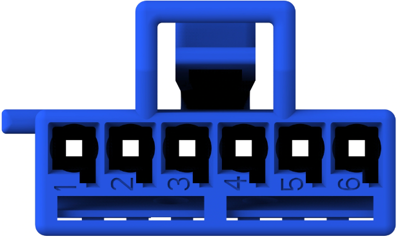

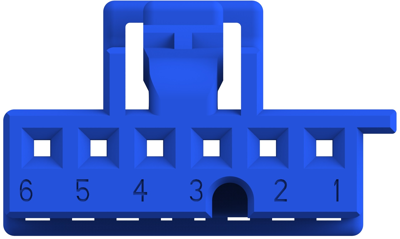

Socket, unequipped, 6 pole, straight, 1 row, blue, 3-969508-2
Order No.: 36P1085
EAN: 4099889893052
MPN:
3-969508-2
Unit Price (€ / pc.)
0.595 € *
Available: 0 pcs.
Leadtime: On Request **
Socket housing, 3-969508-2, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 1, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: blue, Connector code: C, Mating tab width: 0.63 mm, Terminal position assurance: yes, Polarized, Centerline (pitch): 2.54 mm, Height: 10.6 mm, Length: 17.7 mm, Width: 16 mm, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: carton, Packaging quantity: 500, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | blue | |
| Contact type | socket | |
| Rated voltage | 24 V | |
| Rated current | 7.5 A | |
| Pin number | 6 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
