4-1670730-1 | TE Connectivity

Plug, unequipped, 3 pole, straight, 1 row, blue, 4-1670730-1

Order No.: 36P4117
EAN: 4099889904956
MPN:
4-1670730-1
TE Connectivity
4-1670730-1 TE Connectivity Automotive Power Connectors

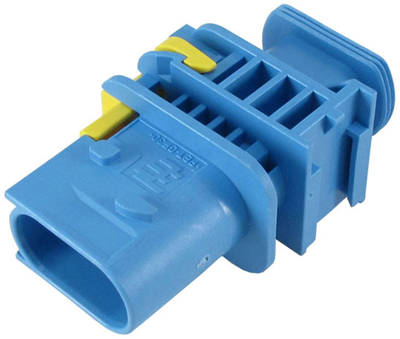

Image may differ
Unit Price (€ / pc.)
2.7013 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.7013 €

Plug housing, 4-1670730-1, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Operating voltage: 60 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 60 V, Body material: PBT GF, Primary product color: blue, Mating tab width: 1.5-Mating alignment type: polarized, Centerline (pitch): 4-Product height: 19 mm, Operating temperature (max): 70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, Operating temperature range: -40-140 °C, Circuit application: signal, UL flammability rating: UL 94V-0, Packaging method: carton, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Connection crimp connection
Number of rows 1
Version straight
Additional parts unequipped
Colour blue
Contact type plug
Rated voltage 60 V
Rated current 20 A
Pin number 3 pole
Grid 4 mm
Type of locking Yes
Logistics
Country of origin CN
Customs tariff number 85389011
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
