4-1718353-2 | TE Connectivity

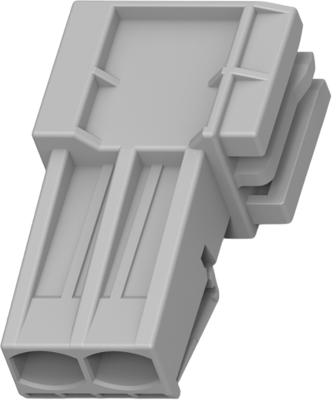

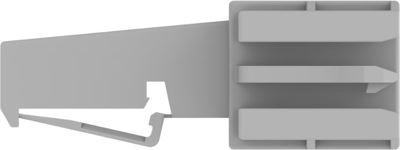

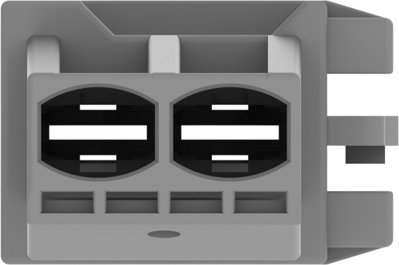

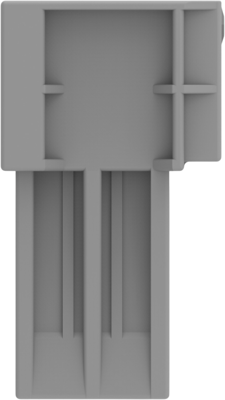

Plug housing, 4-1718353-2, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 36 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: gray, Connector code: D, Mating tab width: 5.8 mm, Strain relief: no, Connector mounting type: cable mount (free-hanging), Centerline (pitch): 8 mm, Product height: 42.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
