444313-1 | TE Connectivity
Socket, unequipped, 9 pole, straight, 3 rows, black, 444313-1
Order No.: 36P2764
EAN: 4099889898262
MPN:
444313-1
Unit Price (€ / pc.)
1.9397 € *
Available: 0 pcs.
Leadtime: On Request **

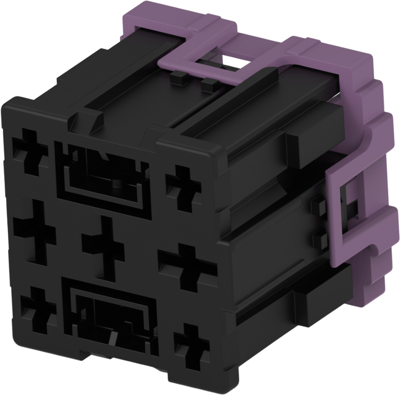

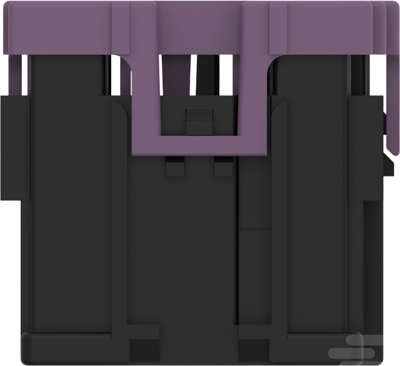

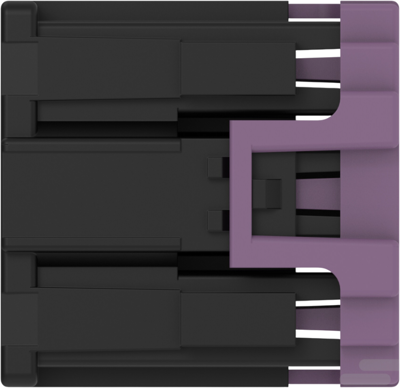

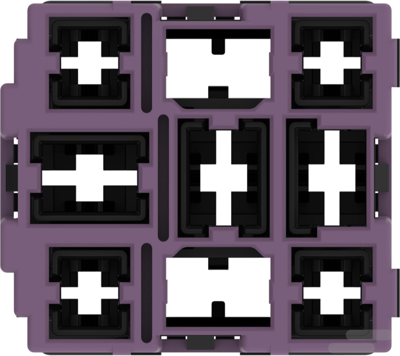

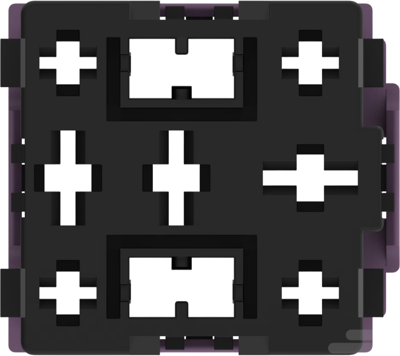

Socket housing, 444313-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 9, Number of rows: 3, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, 4.8 mm, 6.3 mm, Mating alignment type: polarized, Centerline (pitch): 8 mm, 9.9 mm, Row-to-row spacing: 8.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: power & signal, UL flammability rating: UL 94HB, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 3 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Pin number | 9 pole | |
| Grid | 8 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
