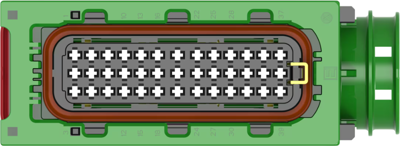

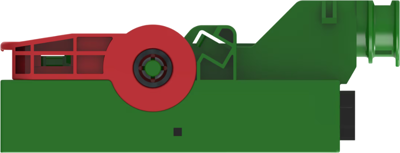

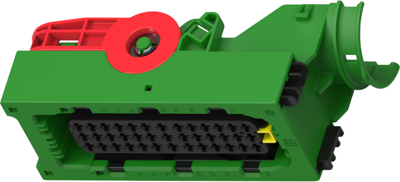

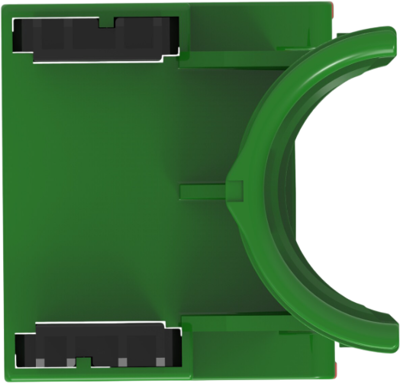

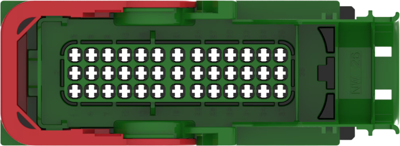

Socket housing, 5-2208684-3, TE Connectivity
Row-to-row spacing: 5.5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 39, Number of rows: 3, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 36 VDC, Cable exit angle: 90°, Body material: PBT GF, Primary product color: green, Mating tab width: 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 5 mm, Height: 44 mm, Length: 120.5 mm, Width: 46 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Degree of protection: IP67, IP69K, UL flammability rating: UL 94V-0, Serviceable: yes, Connector position assurance capable: no
