6473427-1 | TE Connectivity

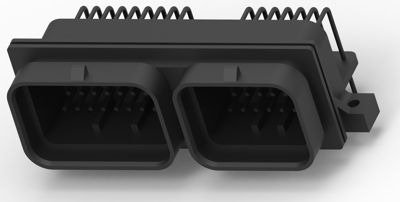

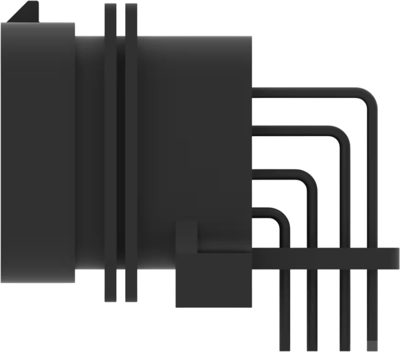

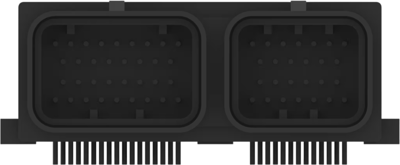

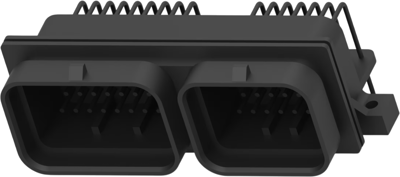

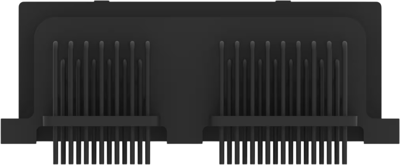

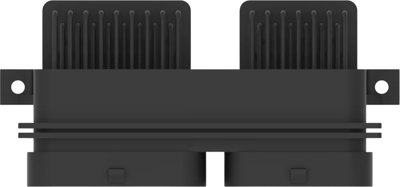

Plug, 60 pole, angled, 4 rows, black, 6473427-1
Unit Price (€ / pc.)
38.7702 € *
Available: 0 pcs.
Leadtime: On Request **
PCB mount header, 6473427-1, TE Connectivity
Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 60, Number of positions: 60, PCB mount orientation: horizontal, Number of rows: 4, Operating voltage: 250 VAC, Primary product color: black, Mating pin diameter: 1 mm, Contact mating area plating material: gold (Au), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 3 mm, Product length: 71 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Shielded: no, Circuit application: signal, Packaging quantity: 8
Technical specifications
| Connection | solder connection | |
| Number of rows | 4 | |
| Version | angled | |
| Colour | black | |
| Contact type | plug | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Pin number | 60 pole | |
| Grid | 3 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
