776074-2 | TE Connectivity
Socket, unequipped, 10 pole, straight, 2 rows, black, 776074-2
Order No.: 35P8799
EAN: 4099889887846
MPN:
776074-2
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Leadtime: On Request **

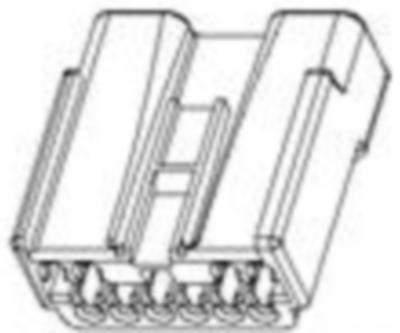

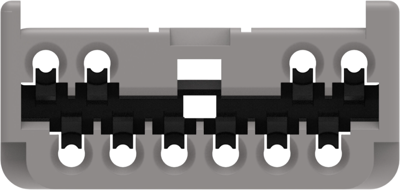

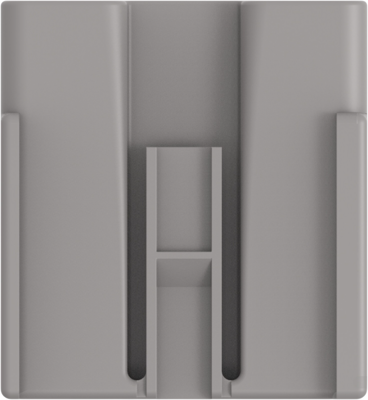

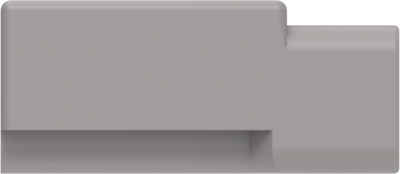

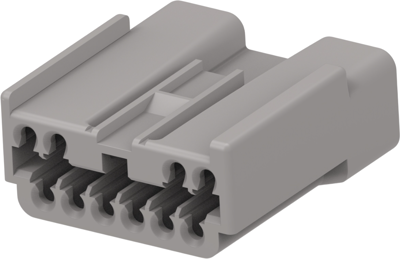

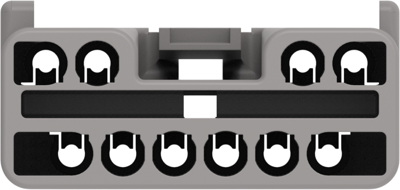

Socket housing, 776074-2, TE Connectivity
Row-to-row spacing: 6.6 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 10, Number of rows: 2, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Terminal position assurance: yes, Polarized, Centerline (pitch): 3.75 mm, Height: 31.6 mm, Length: 29.15 mm, Width: 13.91 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, UL flammability rating: UL 94-HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 28 V | |
| Pin number | 10 pole | |
| Grid | 3.75 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
