776532-3 | TE Connectivity

Socket, unequipped, 8 pole, straight, 2 rows, yellow, 776532-3

Order No.: 36P3876
EAN: 4099889904000
MPN:
776532-3
776532-3 TE Connectivity Automotive Power Connectors

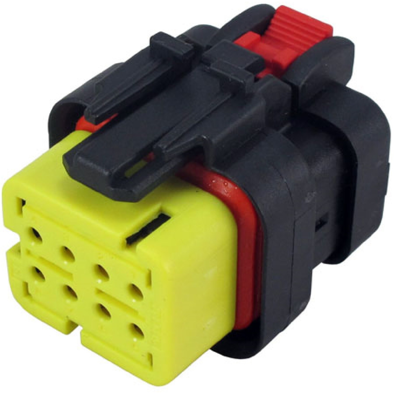

Image may differ
Unit Price (€ / pc.)
10.5315 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
10.53 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.5315 €

Socket housing, 776532-3, TE Connectivity

Row-to-row spacing: 5.3 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 8, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Operating voltage: 250 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: yellow, Connector code: 3, Mating pin diameter: 1.5-Mounting feature: without, Polarized, Centerline (pitch): 4.5 mm, Height: 31.5 mm, Length: 29.33 mm, Width: 36.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Degree of protection: IP67, UL flammability rating: UL 94-HB, Packaging method: package, Packaging quantity: 19, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung gerade
Bestückung unbestückt
Farbe gelb
Kontaktart Buchse
Nennspannung 250 V
Nennstrom 13 A
Polzahl 8-polig
Rastermaß 4.5 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85389011
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
