776538-3 | TE Connectivity

Plug, unequipped, 8 pole, straight, 2 rows, yellow, 776538-3

Order No.: 36P3868
EAN: 4099889903928
MPN:
776538-3
776538-3 TE Connectivity Automotive Power Connectors

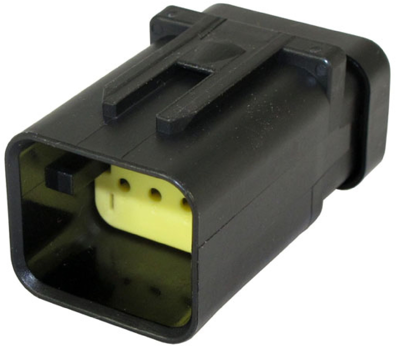

Image may differ
Unit Price (€ / pc.)
7.0448 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
211.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
30 pcs.
7.0448 €

Plug housing, 776538-3, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 2, Operating voltage: 250 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Body material: PBT GF, Primary product color: yellow, Connector code: 3, Mating pin diameter: 1.5-Mating alignment type: polarized, Centerline (pitch): 4.5 mm, Row-to-row spacing: 5.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung gerade
Bestückung unbestückt
Farbe gelb
Kontaktart Stecker
Nennspannung 250 V
Nennstrom 13 A
Polzahl 8-polig
Rastermaß 4.5 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85389011
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
