9-1355512-3 | TE Connectivity

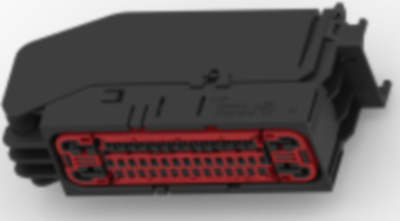

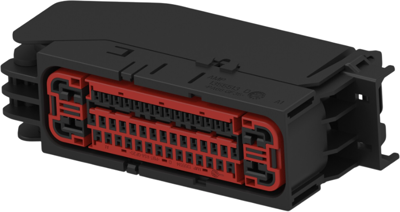

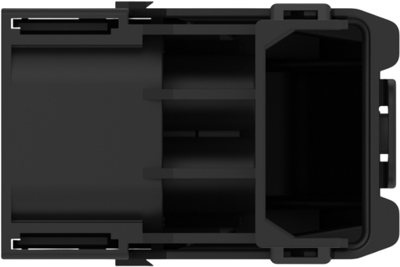

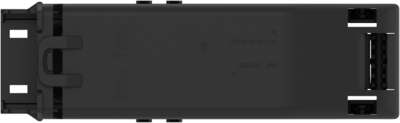

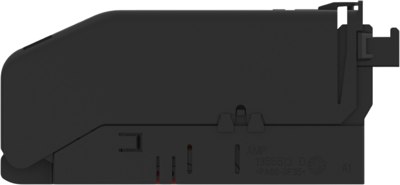

Socket, unequipped, 47 pole, angled, 3 rows, black, 9-1355512-3
Order No.: 35P8583
EAN: 4099889886399
MPN:
9-1355512-3
Unit Price (€ / pc.)
15.351 € *
Available: 0 pcs.
Leadtime: On Request **
Socket housing, 9-1355512-3, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 47, Number of rows: 3, Operating voltage: 14 VAC, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, 6.3 mm, Strain relief: yes, Centerline (pitch): 4-Product height: 57.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: power & signal, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 3 | |
| Version | angled | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 14 V | |
| Pin number | 47 pole | |
| Grid | 4 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369001 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
