9-1419166-0 | TE Connectivity
Plug, unequipped, 8 pole, straight, 1 row, black, 9-1419166-0
Order No.: 35P9489
EAN: 4099889890006
MPN:
9-1419166-0
Unit Price (€ / pc.)
3.6652 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

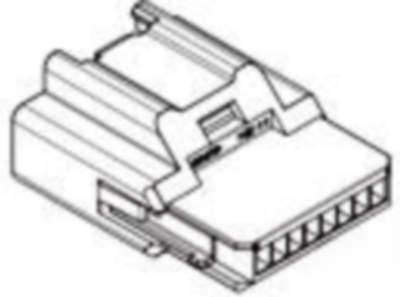

Plug housing, 9-1419166-0, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 35 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Anzahl der Reihen | 1 | |
| Ausführung | gerade | |
| Bestückung | unbestückt | |
| Farbe | schwarz | |
| Kontaktart | Stecker | |
| Nennspannung | 16 V | |
| Polzahl | 8-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
