953236-2 | TE Connectivity

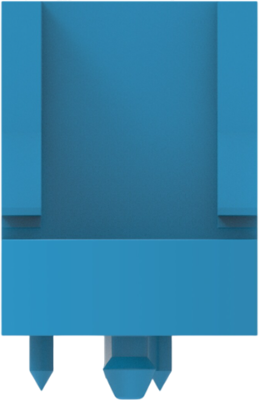

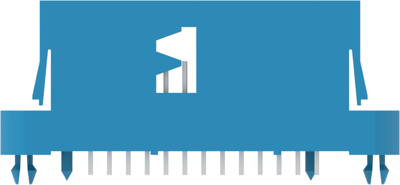

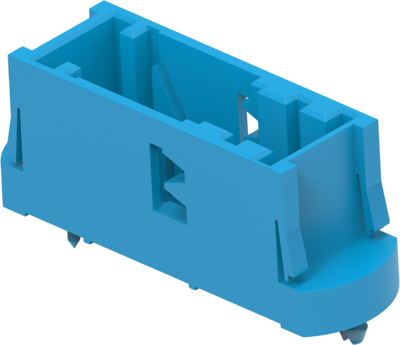

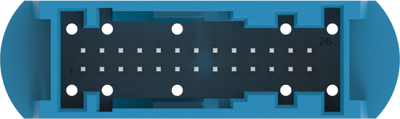

Plug, 26 pole, straight, 2 rows, blue, 953236-2

Order No.: 36P1180
EAN: 4099889893830
MPN:
953236-2
953236-2 TE Connectivity Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
2.9631 € *
Available: 0 pcs.
Leadtime: 38 Weeks **
Total Price:
1,137.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
384 pcs.
2.9631 €

Hybrid header, 953236-2, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 26, Number of positions: 26, PCB mount orientation: vertical, Number of rows: 2, Nominal voltage architecture: 12 V, Primary product color: blue, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 384, Interface number: 208-15550

Technical specifications
Connection Lötanschluss
Number of rows 2
Version gerade
Colour blau
Contact type Stecker
contact surface verzinnt
Rated voltage 12 V
Pin number 26-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin CZ
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
