953472-1 | TE Connectivity

Plug, 26 pole, straight, 2 rows, yellow, 953472-1

Order No.: 36P1178
EAN: 4099889893816
MPN:
953472-1

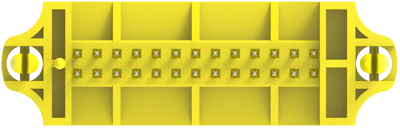

953472-1 TE Connectivity Automotive Power Connectors Image 1

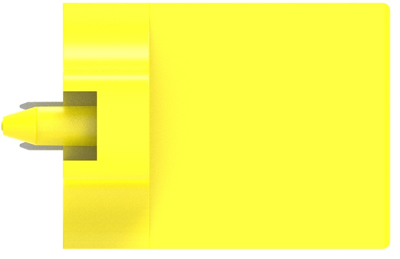

953472-1 TE Connectivity Automotive Power Connectors Image 2

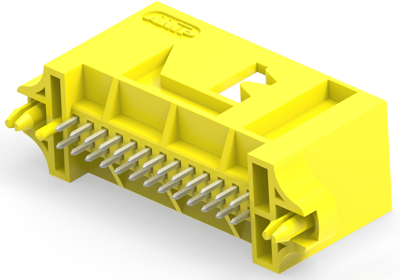

953472-1 TE Connectivity Automotive Power Connectors Image 3

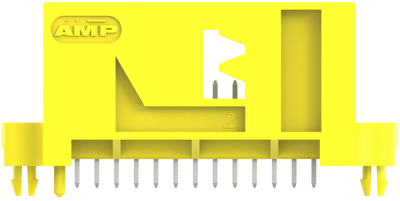

953472-1 TE Connectivity Automotive Power Connectors Image 4

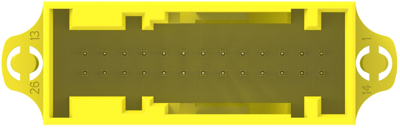

953472-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.9516 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
749.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
384 pcs.
1.9516 €

PCB mount header, 953472-1, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 26, Number of positions: 26, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: yellow, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, Product length: 51 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 384, Interface number: 208-15550

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung gerade
Farbe gelb
Kontaktart Stecker
Kontaktoberfläche verzinnt
Nennspannung 12 V
Polzahl 26-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85369001
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
