953657-4 | TE Connectivity
Plug, unequipped, 5 pole, straight, 1 row, black, 953657-4
Order No.: 36P2995
EAN: 4099889900026
MPN:
953657-4
Unit Price (€ / pc.)
2.4395 € *
Available: 0 pcs.
Leadtime: On Request **

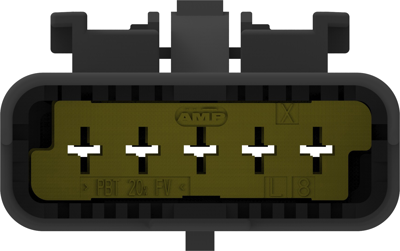

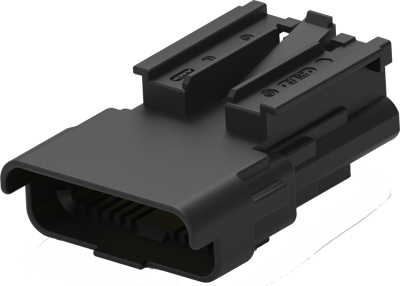

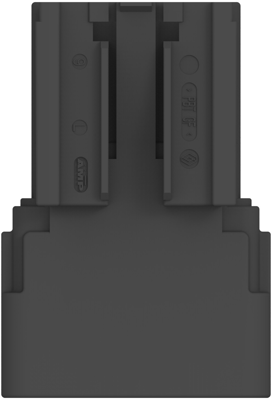

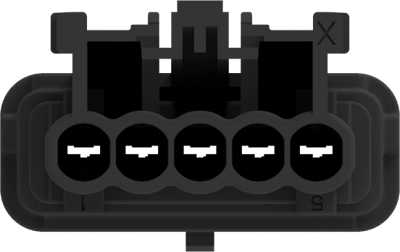

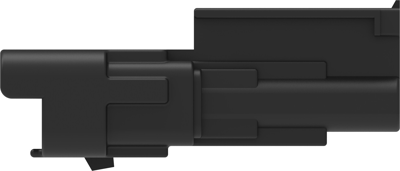

Plug housing, 953657-4, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 5, Number of rows: 1, Operating voltage: 16 VDC, Nominal voltage architecture: 16 V, Body material: PBT GF, Primary product color: black, Connector code: 1, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 19 mm, Operating temperature (max): 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Degree of protection: IP67, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | plug | |
| Rated voltage | 16 V | |
| Rated current | 16 A | |
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
