965543-3 | TE Connectivity

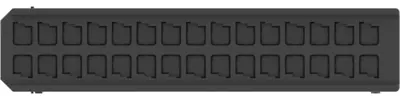

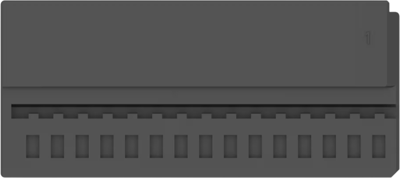

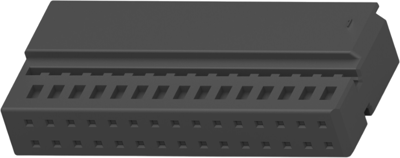

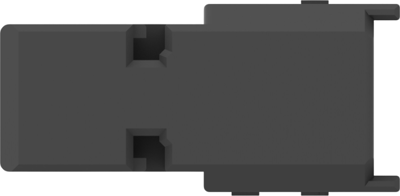

Socket, unequipped, 30 pole, straight, 1 row, black, 965543-3

Order No.: 36P1074
EAN: 4099889892956
MPN:
965543-3
965543-3 TE Connectivity Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
1.0948 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0948 €
10 pcs.
0.9996 €
50 pcs.
0.9044 €
100 pcs.
0.8092 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket housing, 965543-3, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 30, Number of rows: 1, Nominal voltage architecture: 12 V, Operating voltage: 12 VAC, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.54 mm, Height: 21.6 mm, Length: 48.4 mm, Width: 10.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: carton, Packaging quantity: 1000, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Anzahl der Reihen 1
Ausführung gerade
Bestückung unbestückt
Farbe schwarz
Kontaktart Buchse
Nennspannung 12 V
Nennstrom 7.5 A
Polzahl 30-polig
Rastermaß 3 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
