160631-6 | TE Connectivity

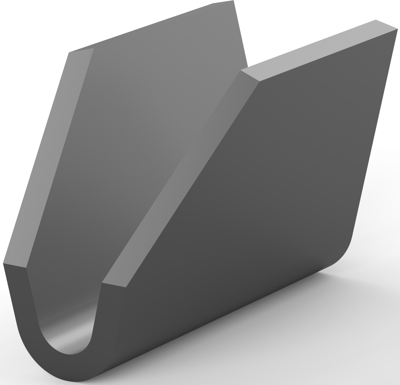

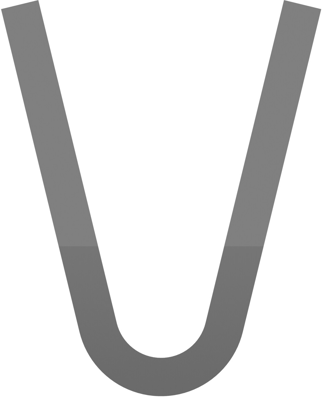

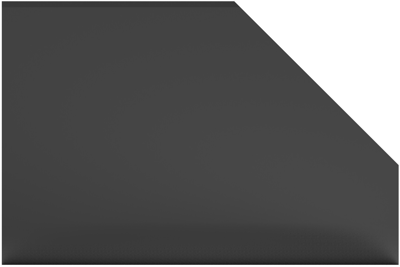

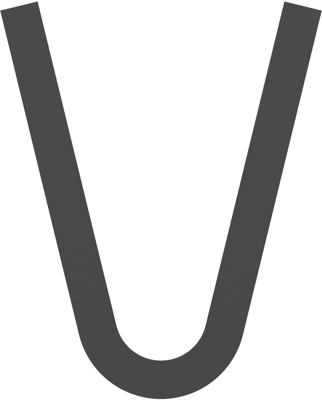

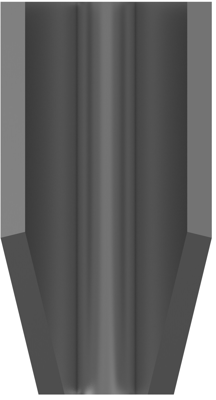

Crimp splice, uninsulated, 0.12-0.9 mm², AWG 26 to 18, black, 5 mm, 160631-6
Unit Price (€ / pc.)
0.0488 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
2,732.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
56000 pcs.
0.0488 €
Splice, 160631-6, TE Connectivity
Splice Product Type: Splice, Sealable: No, Splice Type: Pigtail Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: Side Feed, Splice Capacity: 2, Number of Serrations: 2, Operating Voltage: 250 V, Plating Material: Tin, Splice Features: Serrated, Splice Material: Brass, Contact Plating Material: Pre-Tin, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Wire Size: 26-18 AWG, Wire Size: 0.12-0.9 mm², Barrel Inside Diameter: 0.9 mm, Wire Size: 255-1855 CMA, Splice Material Thickness: 0.32 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -65-150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 8000, Splice Packaging Method: Strip, Comment: Formed Serrations.
Technical specifications
| Ausführung | Crimpverbinder | |
| Leiterquerschnitt | 0,12-0,9 mm² | |
| AWG-Leiterquerschnitt | AWG 26 bis 18 | |
| Isoliert | No | |
| Farbe | schwarz | |
| Material | Messing | |
| Schrumpfschlauch | No | |
| Länge | 5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
