62759-2 | TE Connectivity
Crimp splice, uninsulated, 0.2-0.65 mm², AWG 24 to 19, black, 2.54 mm, 62759-2
Order No.: 34P9811
EAN: 4099889609417
MPN:
62759-2
Unit Price (€ / pc.)
0.0452 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
2,713.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
60000 pcs.
0.0452 €

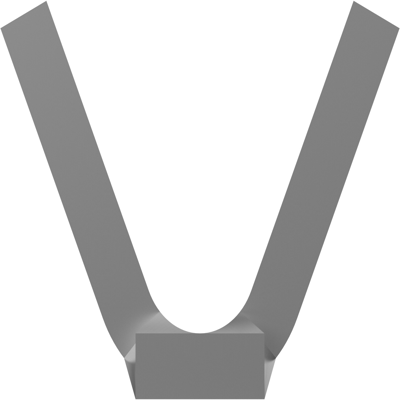

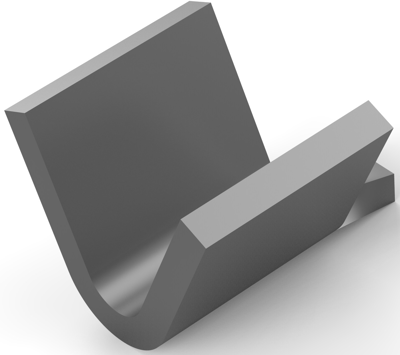

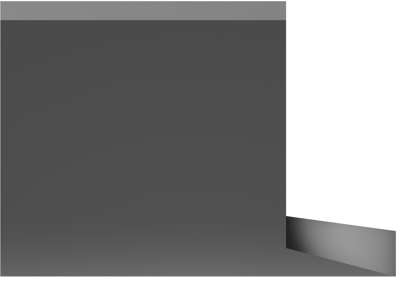

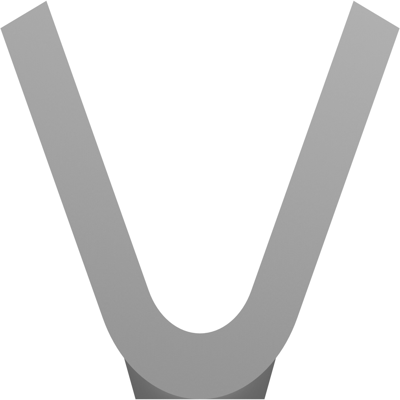

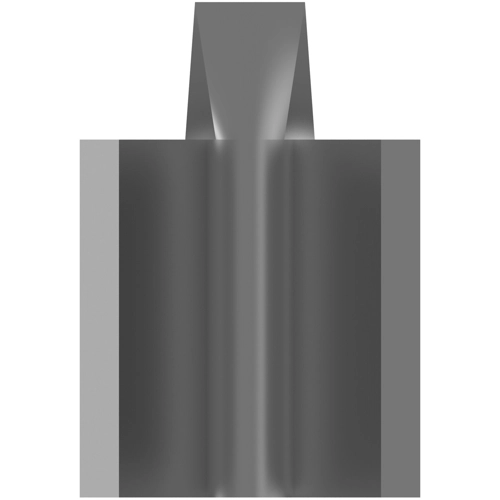

Splice, 62759-2, TE Connectivity
Splice Product Type: Splice, Sealable: No, Splice Type: Thru or Pigtail Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: Side Feed, Splice Capacity: 3, Number of Serrations: 2, Operating Voltage: 250 V, Plating Material: Tin, Splice Material: Brass, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Wire Size: 24-19 AWG, Wire Size: 0.2-0.65 mm², Wire Size: 400-1300 CMA, Splice Material Thickness: 0.41 mm, Splice Overall Length: 2.54 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-110 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Strip
Technical specifications
| Version | Crimpverbinder | |
| Cable cross-section | 0,2-0,65 mm² | |
| AWG cross-section | AWG 24 bis 19 | |
| Isolated | No | |
| Colour | schwarz | |
| Material | Messing | |
| shrinkable tubing | No | |
| Length | 2.54 mm |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
