131297-1 | TE Connectivity

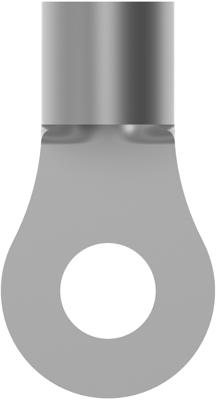

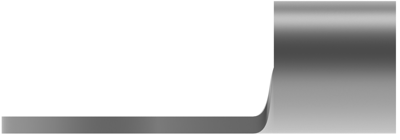

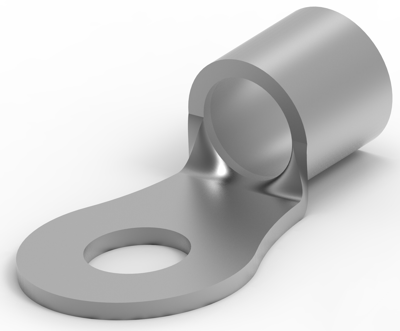

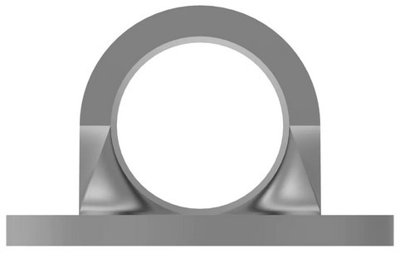

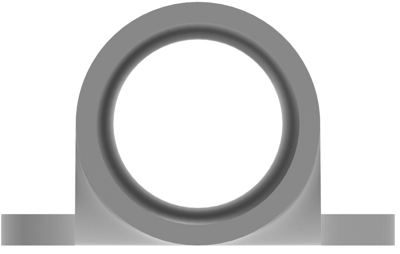

Uninsulated ring cable lug, 34-35 mm², AWG 2, 9.53 mm, 3/8, metal, 131297-1
Order No.: 39P8633
EAN: 4099889602630
MPN:
131297-1
Unit Price (€ / pc.)
30.8329 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 131297-1, TE Connectivity
Shape Description: RING-083, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: 14.2 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 34 – 35 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 9.53 mm,9.91 mm, Tongue Thickness: 0,79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Carton
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 2 | |
| Colour | metal | |
| Thread size | 3/8 | |
| Isolated | No | |
| Cable cross-section | 34-35 mm² | |
| Hole diameter | 9.53 mm | |
| Material | copper, nickel-plated | |
| max. operating temperature | 343 °C | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
