132330-1 | TE Connectivity
Insulated ring cable lug, 8.37 mm², AWG 8, 5 mm, 1/4, metal, 132330-1
Order No.: 39P3140
EAN: 4099889591149
MPN:
132330-1
Unit Price (€ / pc.)
35.2835 € *
Available: 0 pcs.
Leadtime: On Request **

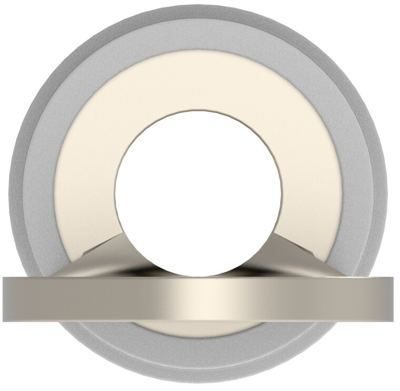

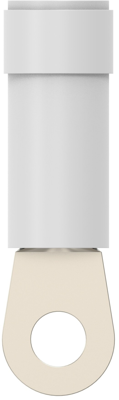

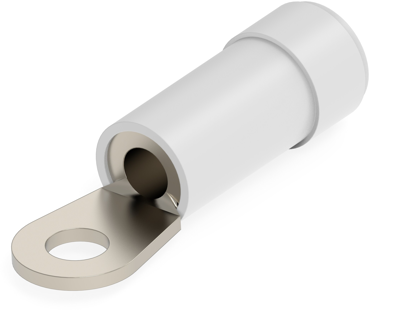

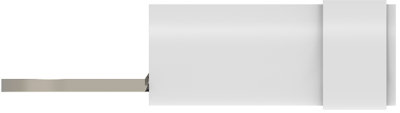

Ring cable lug, 132330-1, TE Connectivity
Ring & Spade Stud Size: 1/4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Regular Wire, Terminal Angle: Straight, Ring & Spade Plating Material: Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 8 AWG, Wire Size: 8.37 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 5 mm, Tongue Thickness: 0,79 mm, Operating Temperature Range: 288 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 25, Ring & Spade Packaging Method: Box & Carton
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 8 | |
| Colour | metal | |
| Thread size | 1/4 | |
| Material Insulation | PTFE | |
| Isolated | Yes | |
| Cable cross-section | 8.37 mm² | |
| Hole diameter | 5 mm | |
| Material | copper, nickel-plated | |
| max. operating temperature | 288 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
