1577623-1 | TE Connectivity

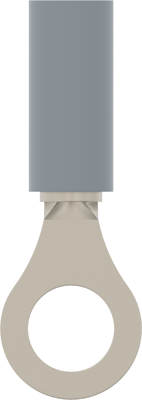

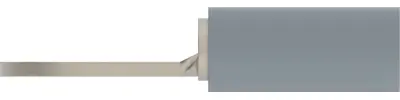

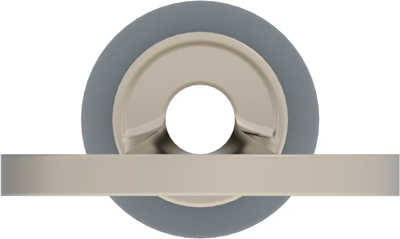

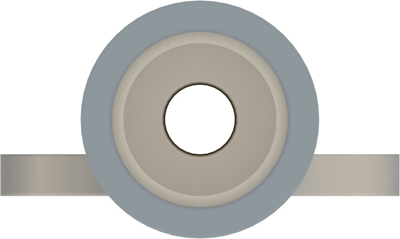

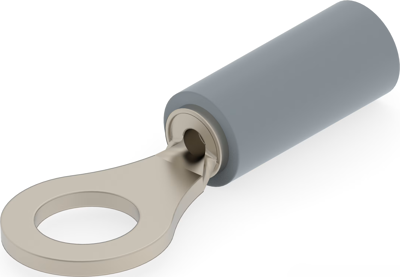

Insulated ring cable lug, 0.518 mm², AWG 20, 4.34 mm, M4, gray, 1577623-1
Order No.: 39P3154
EAN: 4099889591279
MPN:
1577623-1
Unit Price (€ / pc.)
5.7001 € *
Available: 0 pcs.
Leadtime: 42 Weeks **
Total Price:
5.70 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7001 €
10 pcs.
5.2479 €
50 pcs.
4.7243 €
100 pcs.
4.2483 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 1577623-1, TE Connectivity
Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Regular Wire, Number of Holes: 1, Terminal Angle: Straight, Current Rating: 1 A, Insulation Sleeve Color: Gray, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Insulation Diameter (Min): 1.14 mm, Wire Size: 20 AWG, Wire Size: 0,518 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.34 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Bag
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 20 | |
| Colour | grau | |
| Thread size | M4 | |
| Material Insulation | PEEK | |
| Isolated | Yes | |
| Cable cross-section | 0,518 mm² | |
| Hole diameter | 4.34 mm | |
| Material | Kupfer, vernickelt | |
| max. operating temperature | 260 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
