696683-1 | TE Connectivity

Name: Uninsulated rectangular contact tab with hole, AWG 7.7 to 7.3, 14.27 mm, 696683-1
Brand: TE Connectivity
SKU: 72P0913
Price: 53.60 EUR
Availability: OutOfStock

Uninsulated rectangular contact tab with hole, AWG 7.7 to 7.3, 14.27 mm, 696683-1

Order No.: 72P0913

EAN: 4099891605056

MPN:

696683-1

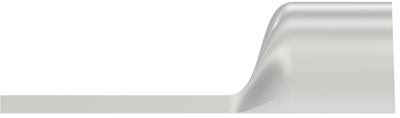

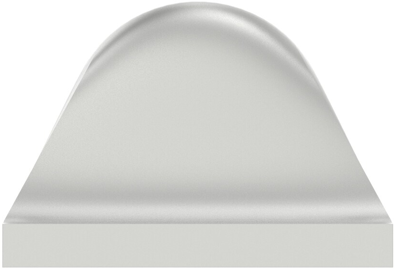

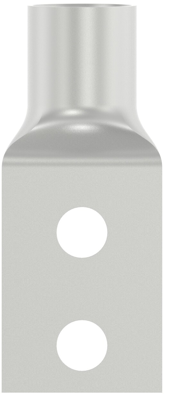

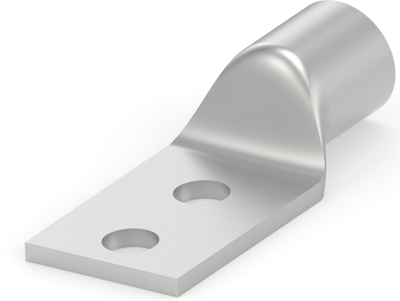

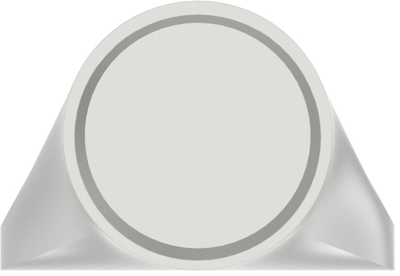

696683-1 TE Connectivity Cable Lugs Image 3

696683-1 TE Connectivity Cable Lugs Image 4

696683-1 TE Connectivity Cable Lugs Image 5

Image may differ

Key Specification:

Ausführung Rechteckiger-Kontaktzunge mit Loch

AWG-Leiterquerschnitt AWG 7,7 bis 7,3

Isoliert No

Download Datasheet Technical specifications

Unit Price (€ / pc.)

53.5976 € *

Available: 0 pcs.

Available in 5 Days: 625 pcs.

Leadtime: 21 Weeks **

Total Price:

53.60 € *

Price list

Quantity

Price per unit*

1 pcs.

53.5976 €

5 pcs.

49.3017 €

10 pcs.

44.8749 €

25 pcs.

40.8289 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Rectangular cable lug, 696683-1, TE Connectivity

Ring terminal & Spade terminal, Rectangular tongue, 7.3 - 7.7 AWG Wire size, Stud size 1/2, Stud diameter 14.27 mm.

Technical specifications

	Ausführung	Rechteckiger-Kontaktzunge mit Loch
	AWG-Leiterquerschnitt	AWG 7,7 bis 7,3
	Isoliert	No
	Lochdurchmesser	14.27 mm
	Material	Kupfer, verzinnt
	max. Temperatur	105 °C
	Schrumpfschlauch	No
