4-1768016-7 | TE Connectivity
PVC cable maker, inscribable, (W x H) 46 x 150 mm, max. bundle Ø 39.8 mm, 4-1768016-7
Unit Price (€ / pck.)
0.8687 € *
Available: 0 pck.
Leadtime: 16 Weeks **
Cable tag for labeling, type TE Connectivity/Idento BKM-.
Self-adhesive. PVC, 0.08 mm thickness. The marker consists of a clear adhesive part with a white legend field and clear protective cover for the legend. Labeled with a typewriter, pencil, ball-point pen or copy machine; Properties: thermal resistance from –30 to +120 °C, sustained adhesive strength, resists dirt, water, alcohol, oils on kerosene basis etc.

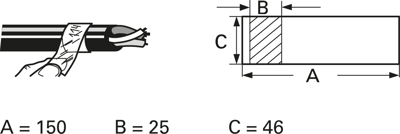

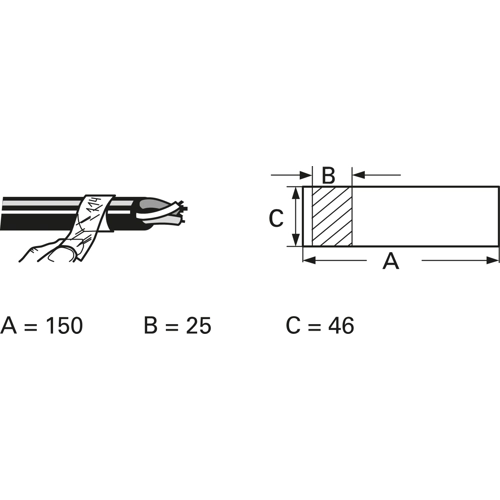

Technical attributes (type, dimensions in mm, number of tags per sheet or pocket size package): 15046, A 150, B 25, C 46, 5 tags
Technical specifications
| Ausführung | Kabelmarkierer | |
| Breite | 46 mm | |
| Höhe | 150 mm | |
| Material | PVC | |
| max. Bündeldurchmesser | 39.8 mm | |
| Beschriftbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39269097 |
| Originalverpackung | Bogen mit 5 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
