1981959-1 | TE Connectivity

1981959-1

Order No.: 37P2642
EAN: 4099889815672
MPN:
1981959-1
1981959-1 TE Connectivity Card Connectors Image 1
1981959-1 TE Connectivity Card Connectors Image 2
1981959-1 TE Connectivity Card Connectors Image 3
1981959-1 TE Connectivity Card Connectors Image 4
1981959-1 TE Connectivity Card Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.4978 € *
Available: 0 pcs.
Available in 5 Days: 5,600 pcs.
Leadtime: 11 Weeks **
Total Price:
4,398.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
800 pcs.
5.4978 €

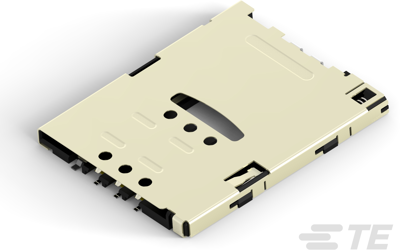

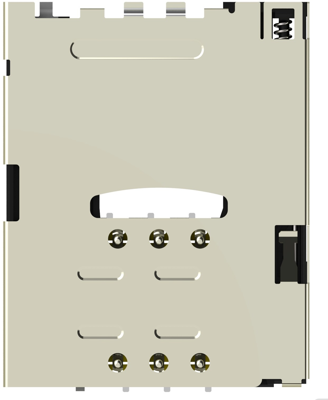

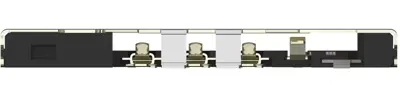

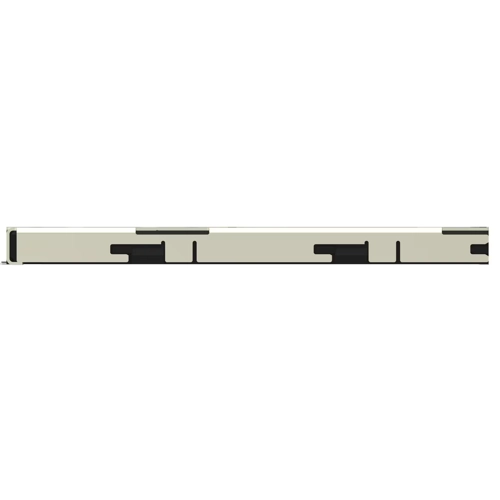

SIM Card Connectors, 1981959-1, TE Connectivity

Module Type: SIM (Security Identity Module), Compatible Card: 2FF mini SIM, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Connector, Card Insertion Style: Normal Insertion, Number of Positions: 6, Number of Loaded Positions: 6, Current Rating (Max): 1.2 A, Voltage Rating: 15 VAC, Ejector Type: Push-Push, Shell Material: Copper Alloy, Contact Base Material: Copper Alloy, Contact Current Rating (Max): 1.2 A, Connector Stabilization Ribs: Without, PCB Mounting Style: Surface Mount, Connector Mounting Type: Board Mount, Contact Retention: Yes, Centerline (Pitch): 2.54 mm, Housing Material: LCP (Liquid Crystal Polymer), Height Above PC Board: 1.87 mm, Operating Temperature Range: -25 – 70 °C, Durability Rating: 1500 Cycles, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Tape & Reel

Technical specifications
Anzahl der Reihen 2
Ausführung Stecker
Polzahl 6-polig
Rastermaß 2.54 mm
Steckverbinder SIM
Verriegelung abgewinkelt
Logistics
Ursprungsland TW
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
