5821997-3 | TE Connectivity

5821997-3

Order No.: 36P9315
EAN: 4099889815542
MPN:
5821997-3
Series: MICRO-EDGE

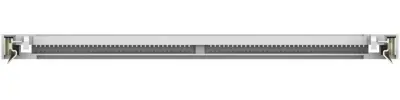

5821997-3 TE Connectivity Card Connectors Image 1

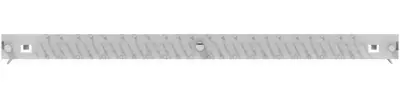

5821997-3 TE Connectivity Card Connectors Image 2

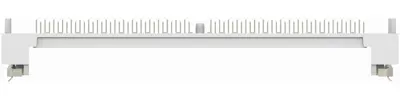

5821997-3 TE Connectivity Card Connectors Image 3
5821997-3 TE Connectivity Card Connectors Image 4
5821997-3 TE Connectivity Card Connectors Image 5
Image may differ
Unit Price (€ / pc.)
8.1753 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
36,053.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4410 pcs.
8.1753 €

SIMM Sockets, 5821997-3, TE Connectivity

Center Post: With, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Socket, Center Key: None, Module Orientation: Vertical, Number of Positions: 72, Number of Rows: 1, Retention Post Location: Center, Contact Base Material: Phosphor Bronze, Contact Current Rating (Max): 1 A, Socket Type: Memory Card, Insertion Style: Cam-In, Termination Post Length: 3.05 mm,3.66 mm, Polarization: Left, PCB Mounting Style: Through Hole - Solder, Connector Mounting Type: Board Mount, Centerline (Pitch): 1.27 mm, Housing Material: LCP (Liquid Crystal Polymer), Center Retention Hole Diameter: 2.45 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Quantity: 45

Technical specifications
Anzahl der Reihen 1
Ausführung Buchse
Polzahl 72-polig
Rastermaß 2.54 mm
Steckverbinder SIMM
Verriegelung gerade
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
