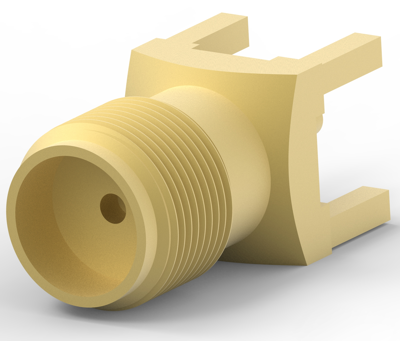

RF Connector, 1-1478979-0, TE Connectivity
Connector Product Type: Connector Assembly, RF Interface: SMA, RF Connector Style: Receptacle, Connector System: Cable-to-Board, Sealable: No, Number of Positions: 1, PCB Mount Orientation: Vertical, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Body Material: Stainless Steel, Body Material Finish: Plated, Body Plating Material: Gold, RF Connector Center Contact Underplating Material: Copper, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Beryllium Copper, Termination Method to Printed Circuit Board: Through Hole - Solder, Termination Post & Tail Length: 3.5 mm, RF Connector Coupling Mechanism: Threaded, Connector Mounting Type: Board Mount, Detent: Without, Product Length: 13 mm, RF Connector Mated Outer Diameter (Approximate): 6.35 mm, Height Above PC Board: 9.5 mm, Operating Temperature Range: -65 – 165 °C, Operating Frequency: 26 GHz, Packaging Quantity: 100, Packaging Method: Bag, Grade: Professional, Dielectric Material: PTFE
