1-280530-1 | TE Connectivity

Name: Receptacle, 0.12-0.4 mm², AWG 26-22, crimp connection, gold-plated, 1-280530-1
Brand: TE Connectivity
SKU: 37P6723
Price: 0.10 EUR
Availability: OutOfStock

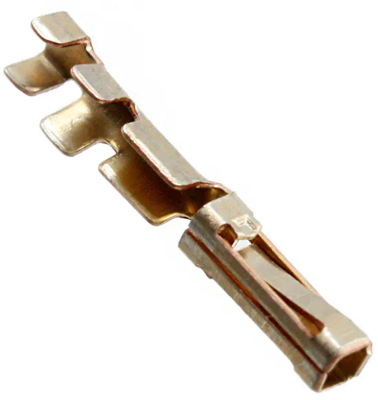

Receptacle, 0.12-0.4 mm², AWG 26-22, crimp connection, gold-plated, 1-280530-1

Order No.: 37P6723

EAN: 4099889650617

MPN:

1-280530-1

Image may differ

Key Specification:

Ausführung Buchsenkontakt

Leiterquerschnitt 0,12-0,4 mm²

AWG-Leiterquerschnitt AWG 26-22

Kontaktanschluss Crimpanschluss

Kontaktmaterial Phosphorbronze

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1035 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.10 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Socket contact, 1-280530-1, TE Connectivity

Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1 - 1.55 mm, Wire Size: 26 - 22 AWG, Wire Size: 254.1 - 642.5 CMA, Wire Size: 0.12 -0.4 mm², Operating Temperature Range: -40 - 80 °C.

Technical specifications

	Ausführung	Buchsenkontakt
	AWG-Leiterquerschnitt	AWG 26-22
	Isolationsdurchmesser	1-1,55 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Phosphorbronze
	Kontaktoberfläche Steckbereich	vergoldet
	Kontaktoberfläche	vergoldet
	Leiterquerschnitt	0,12-0,4 mm²
