1437284-9 | TE Connectivity

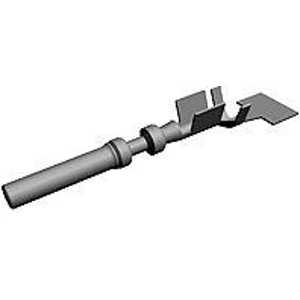

Receptacle, 0.5-2.0 mm², AWG 20-14, crimp connection, gold-plated, 1437284-9
Order No.: 36P1914
EAN: 4099889643190
MPN:
1437284-9
Unit Price (€ / pc.)
0.4879 € *
Available: 0 pcs.
Available in 5 Days: 21,000 pcs.
Leadtime: 21 Weeks **
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
7000 pcs.
0.4879 €
28000 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 1437284-9, TE Connectivity
Sealable: No, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Socket, Automotive terminal Interface Plating: Gold (Au), Contact Termination Area Plating Material: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.77 - 2.46 mm.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-14 | |
| Insulation diameter | 1.77-2.46 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5-2.0 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
| Original Packaging | Reel with 7,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
