1544969-1 | TE Connectivity

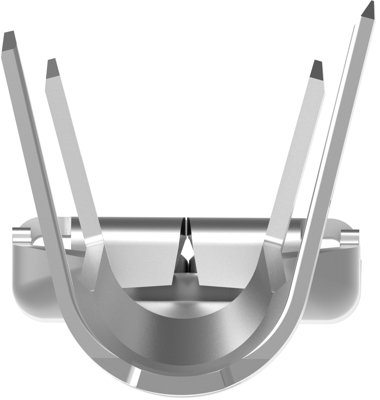

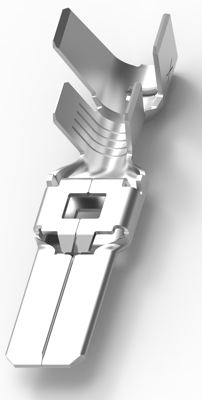

Tab, 7.0-10 mm², AWG 9-7, crimp connection, tin-plated, 1544969-1
Order No.: 36P1885
EAN: 4099889643183
MPN:
1544969-1
Unit Price (€ / pc.)
0.7497 € *
Available: 0 pcs.
Leadtime: On Request **
Contacts for motor vehicles, 1544969-1, TE Connectivity
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 8 mm, Mating Tab Thickness: 1 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 9 - 7 AWG, Wire Size: 7 - 10 mm², Wire Size Search: 8 mm², 10 mm², Wire Size Search: 8 AWG, 9 AWG, Wire Insulation Diameter: 4.9 - 5.9 mm, 130 °C, 140 °C, 145 °C, 150 °C, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Version | tab | |
| AWG cross-section | AWG 9-7 | |
| Insulation diameter | 4.9-5.9 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| contact surface | tin-plated | |
| Cable cross-section | 7.0-10 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
