1565080-1 | TE Connectivity

Tab, 0.33-0.82 mm², AWG 22-18, crimp connection, tin-plated, 1565080-1

Order No.: 34P8817
EAN: 4099889635508
MPN:
1565080-1
TE Connectivity

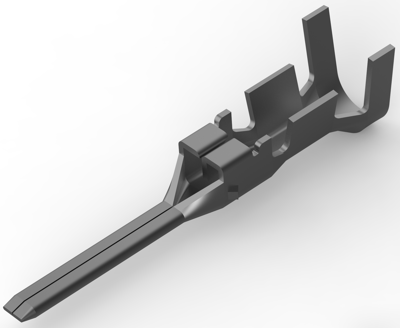

1565080-1 TE Connectivity Crimp Contacts Image 1

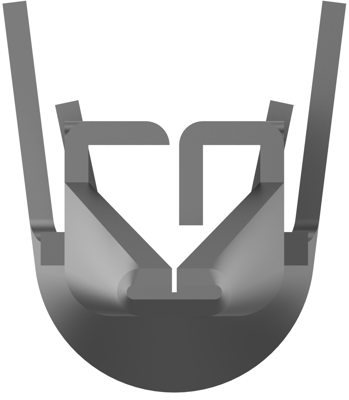

1565080-1 TE Connectivity Crimp Contacts Image 2

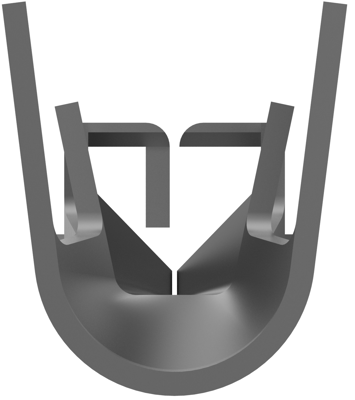

1565080-1 TE Connectivity Crimp Contacts Image 3
Image may differ
Unit Price (€ / pc.)
0.1345 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.13 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1345 €
50 pcs.
0.1226 €
100 pcs.
0.1095 €
500 pcs.
0.0988 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power contact, 1565080-1, TE Connectivity

Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 300 VAC, Insulation Resistance: 1000, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 7 A, Contact Type: Tab, Contact Retention Within Housing: With, Mating Tab Width: 1.2 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.33 -0.82 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.7 mm, Operating Temperature Range: -30 - 105 °C, Circuit Application: Power, Glow Wire Rating: Standard Part - Not Glow Wire. Packaging Quantity: 5000, For Use With: Cap Housing, Comment: Use with Grace Inertia Connector 3.5

Technical specifications
Version tab
AWG cross-section AWG 22-18
Insulation diameter 1.5-2.7 mm
Contact connection crimp connection
Contact material copper alloy
Contact surface Connection range tin-plated
Contact surface mating area tin-plated
contact surface tin-plated
Cable cross-section 0.33-0.82 mm²
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
