1586065-1 | TE Connectivity

Name: Receptacle, 4-6 mm², AWG 12-10, crimp connection, 1586065-1
Brand: TE Connectivity
SKU: 71P2458
Price: 0.14 EUR
Availability: OutOfStock

Receptacle, 4-6 mm², AWG 12-10, crimp connection, 1586065-1

Order No.: 71P2458

EAN: 4099889882285

MPN:

1586065-1

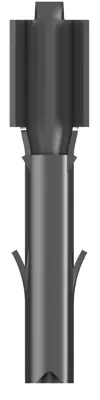

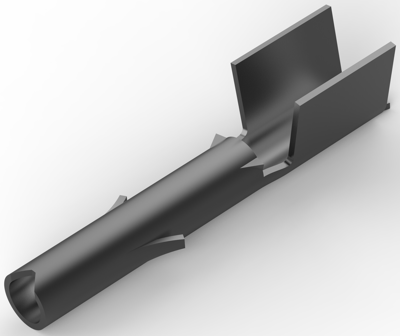

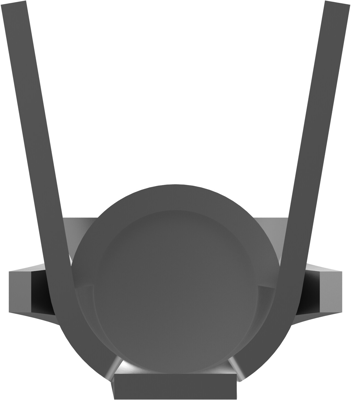

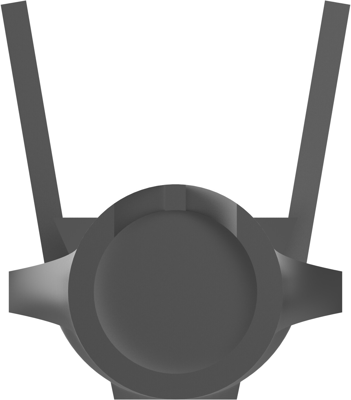

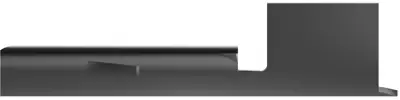

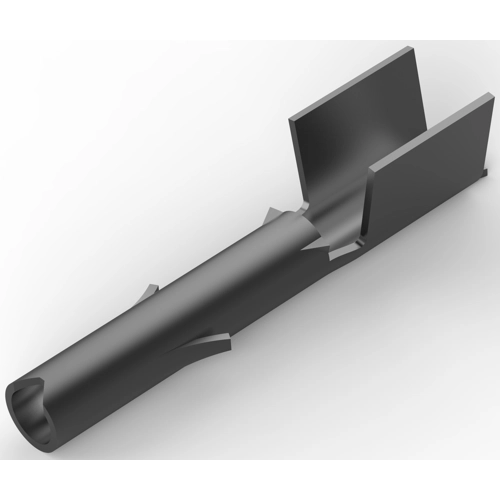

1586065-1 TE Connectivity Crimp Contacts Image 3

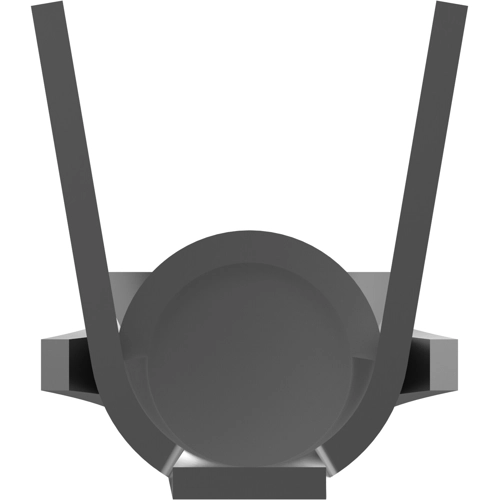

1586065-1 TE Connectivity Crimp Contacts Image 4

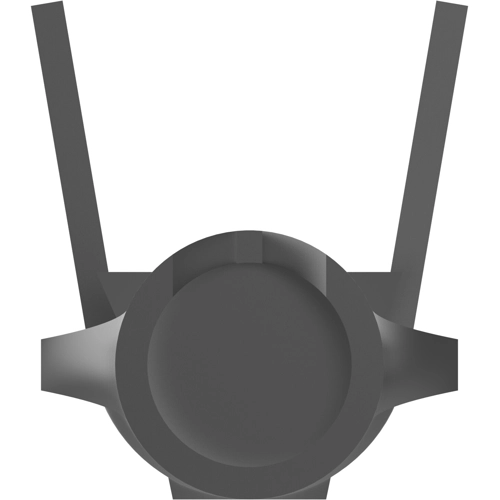

1586065-1 TE Connectivity Crimp Contacts Image 5

Image may differ

Key Specification:

Version receptacle

Cable cross-section 4-6 mm²

AWG cross-section AWG 12-10

Contact connection crimp connection

Contact material Copper-Nickel-Silicone

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1416 € *

Available: 0 pcs.

Available in 5 Days: 7,750 pcs.

Leadtime: 71 Weeks **

Add to Cart

Total Price:

0.14 € *

Price list

Quantity

Price per unit*

2500 pcs.

0.1416 €

5000 pcs.

0.1345 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Connector contact, 1586065-1, TE Connectivity

Connector contact, Socket, Tin, Tin, 600 VAC, 600 VDC, Locking lance contact retention, 12-10 AWG Wire size, 4-6 mm² Wire size.

Technical specifications

	Version	receptacle
	AWG cross-section	AWG 12-10
	Insulation diameter	5.08 mm
	Contact connection	crimp connection
	Contact material	Copper-Nickel-Silicone
	Contact surface Connection range	tin-plated
	Contact surface mating area	tin-plated
	Cable cross-section	4-6 mm²
