1670328-1 | TE Connectivity

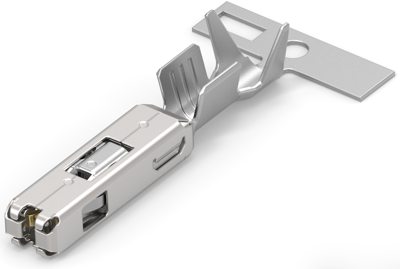

Receptacle, 1.4-2.0 mm², AWG 16-14, crimp connection, gold-plated, 1670328-1
Order No.: 35P8931
EAN: 4099889639421
MPN:
1670328-1
Unit Price (€ / pc.)
0.2451 € *
Available: 0 pcs.
Leadtime: On Request **
Contacts for motor vehicles, 1670328-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 06 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 1.4 - 2 mm², Wire Size Search: 1.5 mm², 2 mm², Wire Insulation Diameter: 2.2 - 2.8 mm, 130 °C, 140 °C, 145 °C, 150 °C, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 16-14 | |
| Insulation diameter | 2.2-2.8 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| Contact surface Connection range | gold-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 1.4-2.0 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
