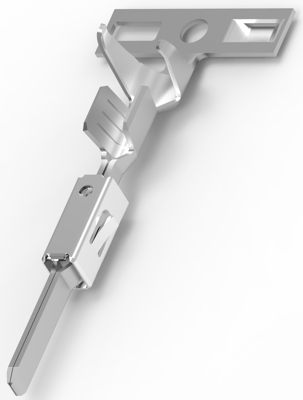

1703278-2 | TE Connectivity
Tab, 1.5 mm², AWG 15, crimp connection, tin-plated, 1703278-2
Order No.: 36P3352
EAN: 4099889644555
MPN:
1703278-2
Unit Price (€ / pc.)
0.1583 € *
Available: 0 pcs.
Available in 5 Days: 4,000 pcs.
Leadtime: 21 Weeks **
Total Price:
633.08 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.1583 €
8000 pcs.
0.1523 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 1703278-2, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 15 AWG, Wire Size: 1.5 mm², Wire Size Search: 1.5 mm², Wire Size Search: 15 AWG, Wire Insulation Diameter: 2.2 - 2.4 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | Flachstecker | |
| AWG cross-section | AWG 15 | |
| Insulation diameter | 2,2-2,4 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupfer-Eisen-Legierung | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 1,5 mm² |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
