1743654-1 | TE Connectivity

Receptacle, 0.3-0.5 mm², AWG 22-20, crimp connection, tin-plated, 1743654-1

Order No.: 36P1817
EAN: 4099889642896
MPN:
1743654-1
Series: Multilock

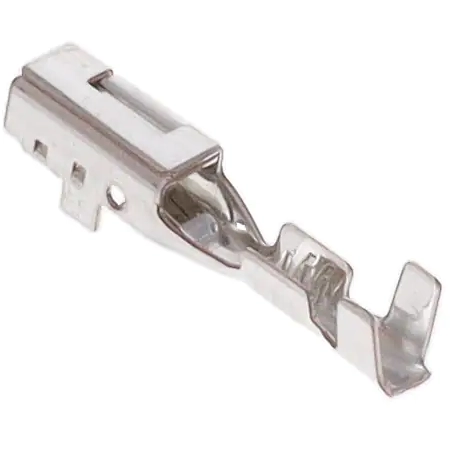

1743654-1 TE Connectivity Crimp Contacts Image 1

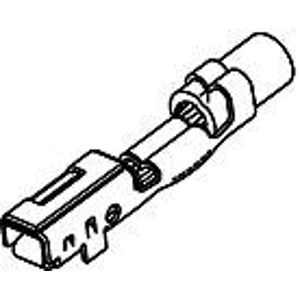

1743654-1 TE Connectivity Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.1047 € *
Available: 0 pcs.
Available in 5 Days: 59,710 pcs.
Leadtime: 10 Weeks **
Total Price:
523.60 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.1047 €
10000 pcs.
0.0976 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket contact, 1743654-1, TE Connectivity

Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.3 mm, Mating Tab Thickness: 0.64 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 22 - 20 AWG, Wire Size: 0.3 -0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, Wire Size Search: 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Insulation Diameter: 1.5 - 1.7 mm, Operating Temperature Range: -40 - 125 °C.

Technical specifications
Ausführung Buchsenkontakt
AWG-Leiterquerschnitt AWG 22-20
Isolationsdurchmesser 1,5-1,7 mm
Kontaktanschluss Crimpanschluss
Kontaktmaterial Kupfer-Nickel-Legierung
Kontaktoberfläche Anschlussbereich verzinnt
Kontaktoberfläche verzinnt
Leiterquerschnitt 0,3-0,5 mm²
Logistics
Ursprungsland TH
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
