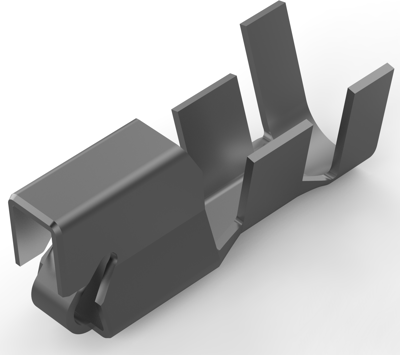

1744201-1 | TE Connectivity
Receptacle, 0.52-1.31 mm², AWG 20-16, crimp connection, 1744201-1
Unit Price (€ / pc.)
0.0821 € *
Available: 0 pcs.
Available in 5 Days: 52,000 pcs.
Leadtime: 4 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.0821 €
8000 pcs.
0.0797 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 1744201-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Shape & Form: Single Beam in Box, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 12.3 A, Contact Type: Socket, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 16 AWG, Wire Size: 0.52 - 1.31 mm², Accepts Wire Insulation Diameter Range: 1.7 - 3 mm, Height: 4 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-16 | |
| Insulation diameter | 1.7-3 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.52-1.31 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
