1871859-1 | TE Connectivity

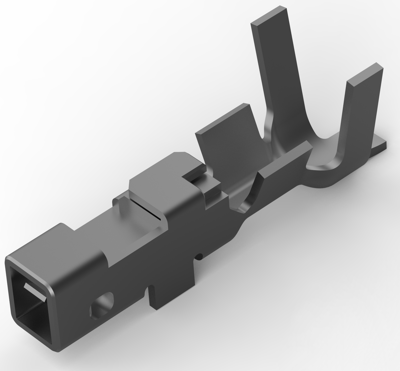

Receptacle, 0.08-0.38 mm², AWG 28-22, crimp connection, 1871859-1
Order No.: 34P8826
EAN: 4099889635546
MPN:
1871859-1
Unit Price (€ / pc.)
0.0869 € *
Available: 0 pcs.
Available in 5 Days: 6,000 pcs.
Leadtime: 36 Weeks **
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.0869 €
18000 pcs.
0.0726 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-to-board connector contact, 1871859-1, TE Connectivity
Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 50 VAC, Contact Base Material: Copper Alloy, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2.5 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.08 - 1.9 mm, Wire Size: 28 - 22 AWG, Wire Size: 0.079 - 0.38 mm², Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 28-22 | |
| Insulation diameter | 1.08-1.9 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.08-0.38 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
